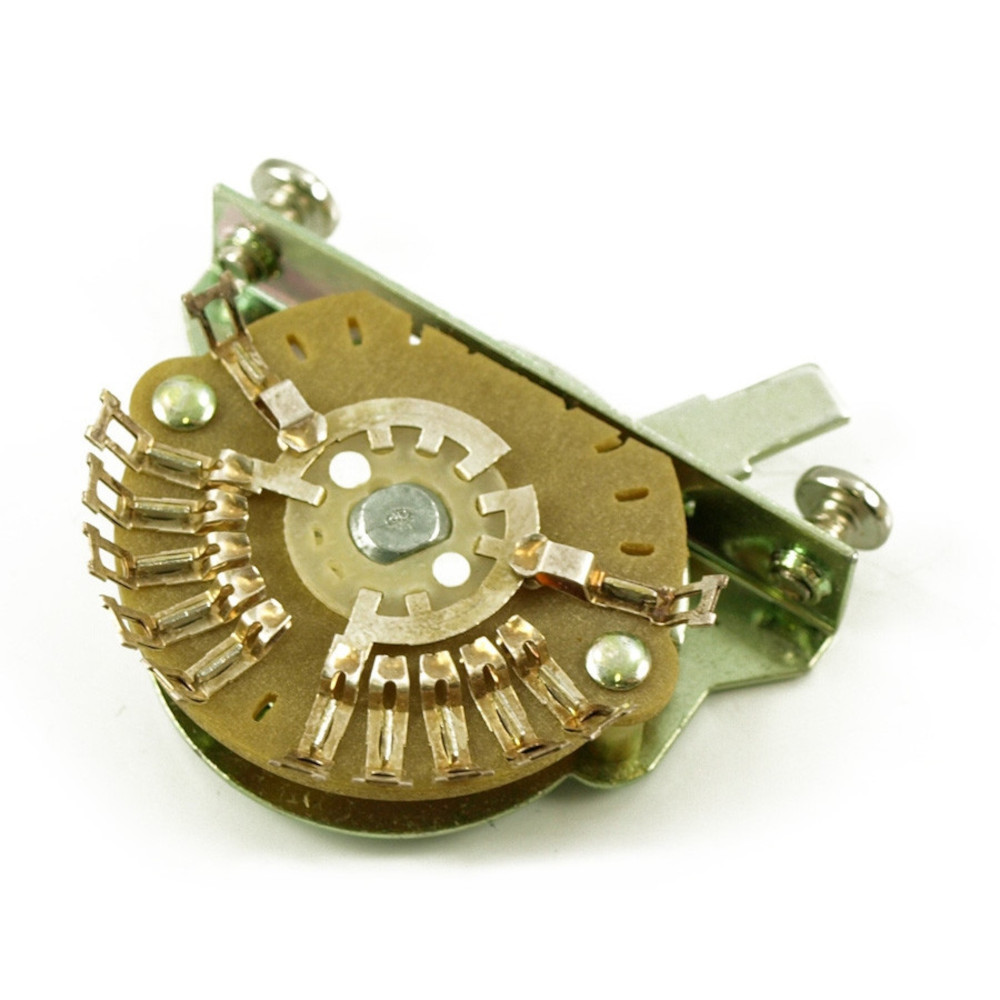

This Oak® switch by Electroswitch® lets you wire guitars in imaginative ways not possible with a standard 5-way switch. It's a special 2-pole switch with six lugs per pole (one common and one each for the five lever positions.
The added terminals allow a level of flexibility and control that is not possible with traditional lever switches.
Terminal assignment: There are a total of 12 solder terminals (lugs) on this switch. The switch is divided into two separate circuits, or poles, and each pole has six lugs. Lug 0 is the common which is connected to other lugs depending on the lever's position. The five other terminals on each pole correspond to the five positions of the switch. Lug #1 = position 1, Lug #2 = position 2, etc.
Important Specs and Dimensions:
Oak® single wafer - 2 pole, 5 way lever switch
Standard U.S. size. Fits 5/8 in. x 1-1/16 in. slot.
1-5/8 in. center to center screw spacing.
1-3/8 in. cavity depth.
