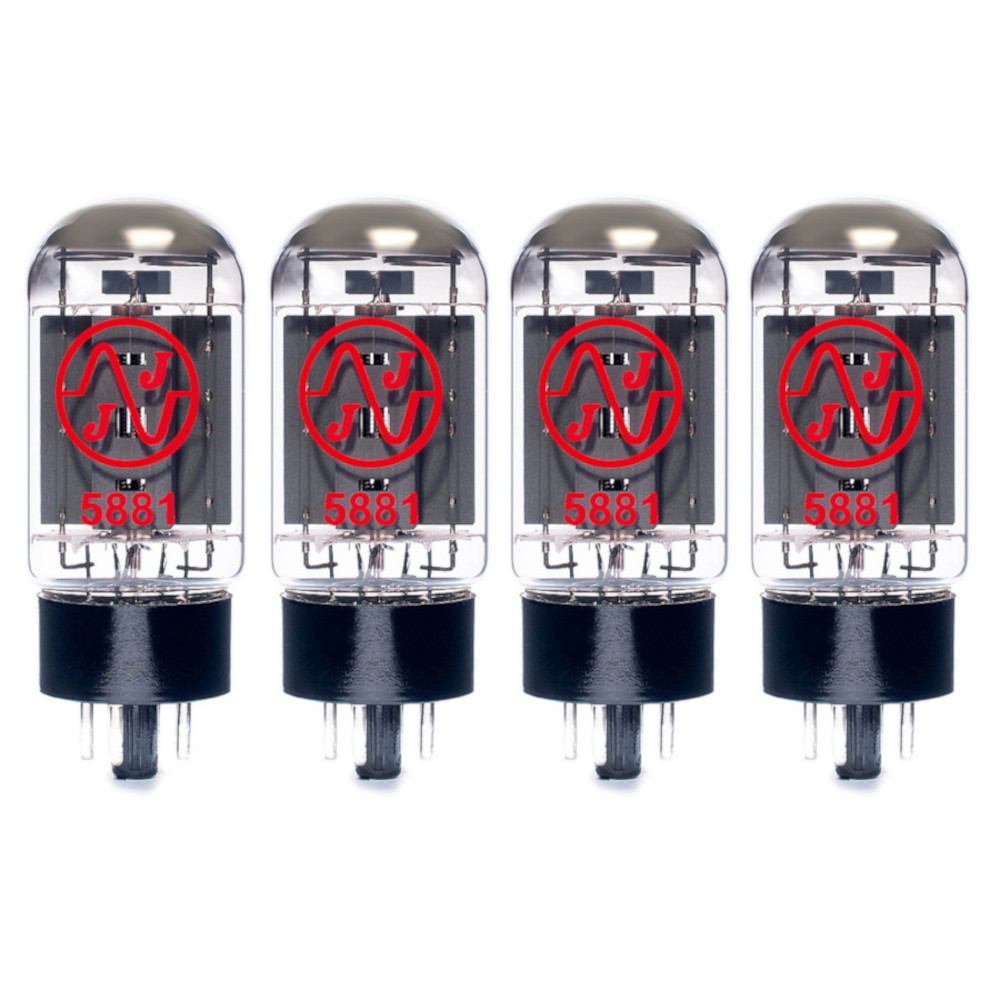

5881 is a beam power pentode with a maximum plate dissipation of 23W in the classical short bulb. It is very similar to the 6L6 sound but with less power. It can be used in any 6L6 amplifier.
Free Shipping on Orders over 175€
+351 211 653 812 (National landline network)
Hassle Free Returns
30 days Warranty
Base: OCTAL
Uf = 6,3 V
If = 0,9 A
Typical Characteristics: Class A1:
Single tube Push-Pull
Ua = 250 270 V
Ug2 = 250 270 V
Ug1 = -14 -17,5 V
Ia = 63 134 mA
Ig2 = 4,3 11 mA
Ra = 2,5 - kΩ
Ra-a = - 5 kΩ
N = 6,7 17,5 W
Limiting Values:
Triode Pentode
Ua = 450 500 V
Ug2 = 450 450 V
Wa = 26 23 W
Grid No 1 Circuit Resistance
Fixed Bias 0,1 MΩ
Self Bias 0,5 MΩ
