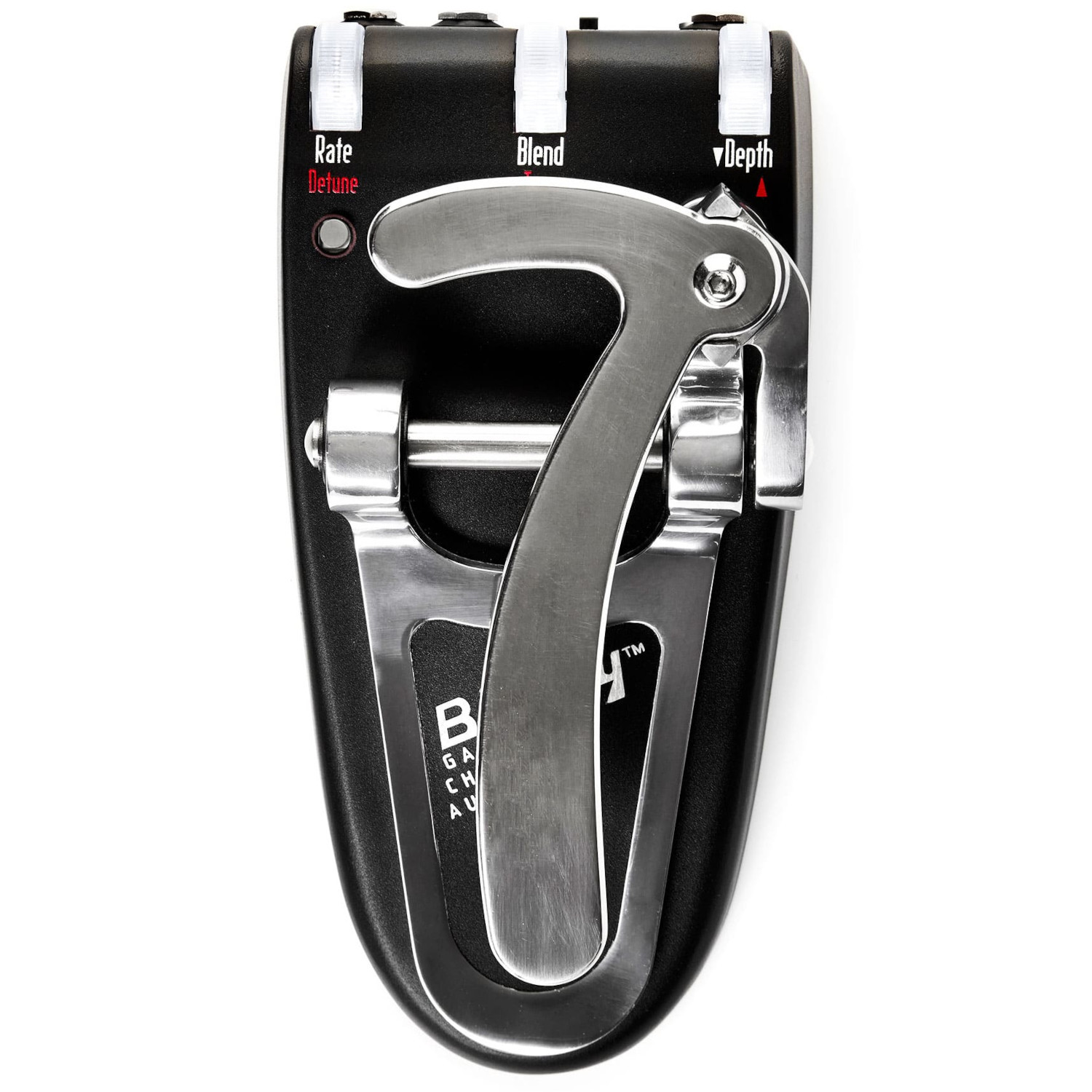

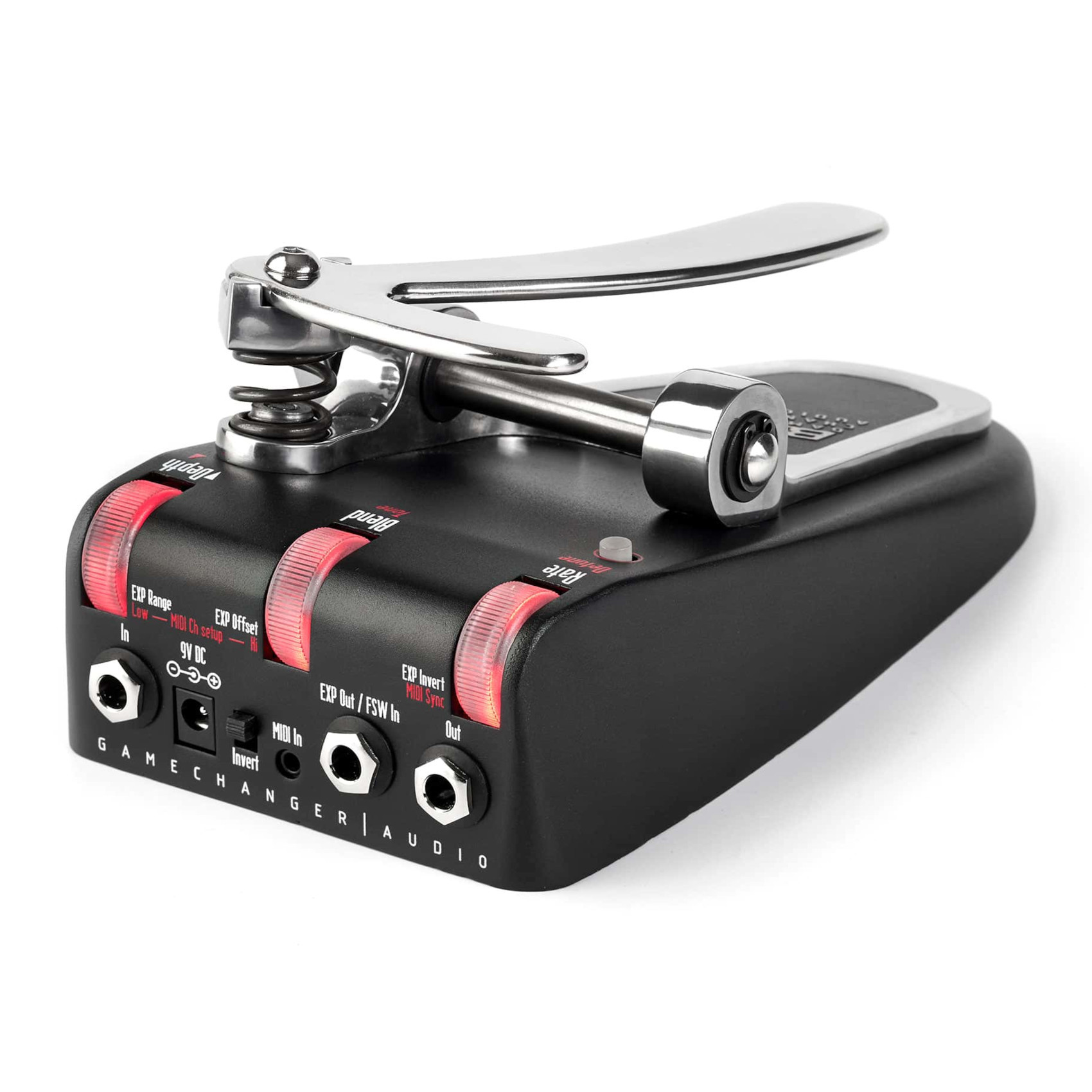

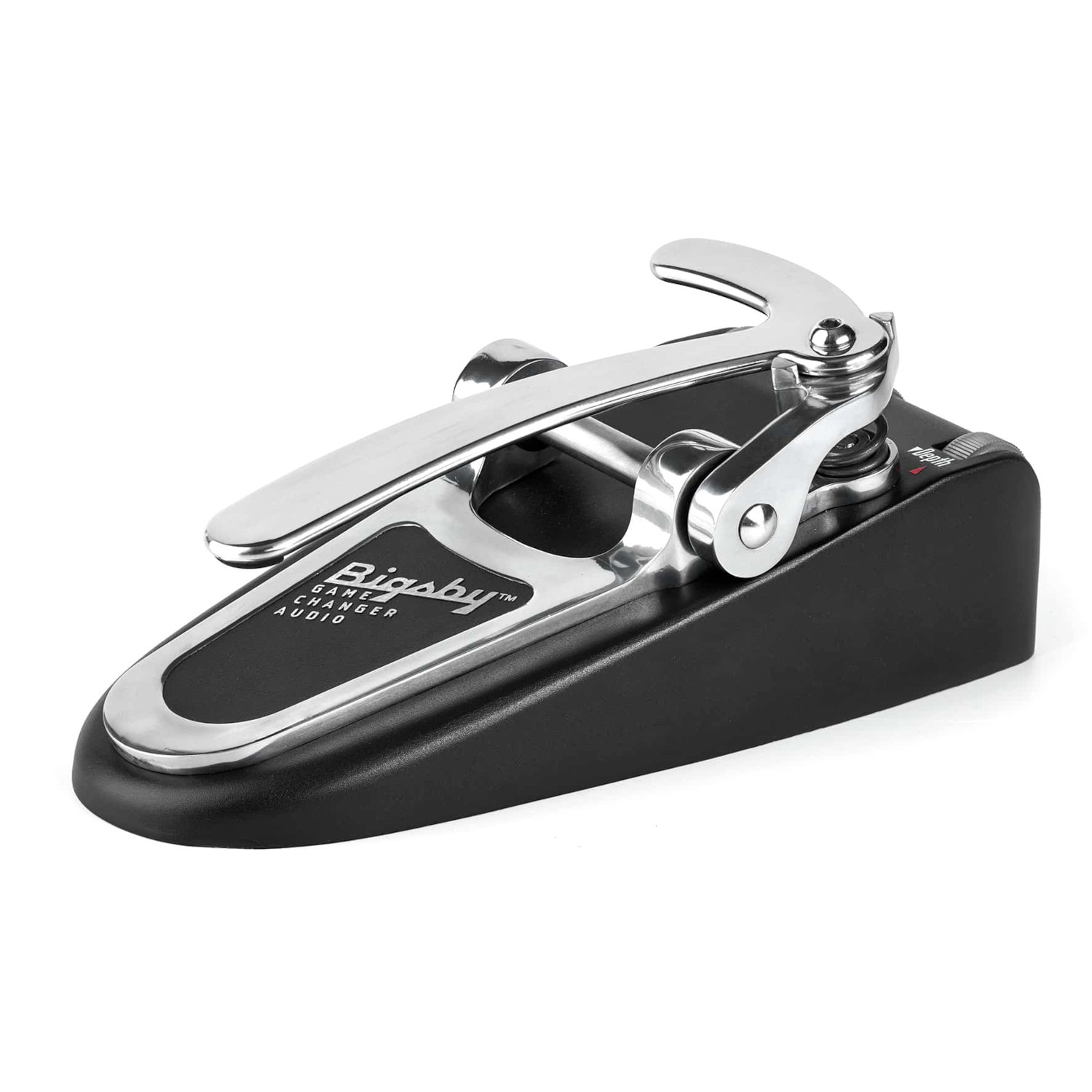

Gamechanger BIGSBY Pedal

ALGORITHM
Powered by the formidable SHARC® Audio Processor, the BIGSBY Pedal runs a hybrid algorithm specifically developed by Gamechanger Audio to achieve smooth polyphonic real-time pitch-shifting at low intervals. It has been painstakingly tweaked to preserve the natural timbre and sound of electric and acoustic string instruments, including baritone and bass guitars, guitars, mandolins, banjos, etc.

Another key component of the BIGSBY Pedal’s sound is the DETUNE parameter.
A carefully crafted algorithm that is designed to emulate the imperfections and dissonant properties of traditional mechanical string-bending hardware. As a result, the vibrato effects produced by the BIGSBY Pedal are almost indistinguishable from those of a conventional tremolo arm.

INTERFACE
The unique spring-loaded foot-pedal design opens up a world of new strumming patterns, bend combinations and beautiful lap-steel and slide-inspired licks that cannot be achieved with traditional tremolo systems.

The BIGSBY pedal is always “on” – the only thing you need to do to activate it is to step on the foot-pedal.

The algorithm ensures that transitions between the DRY and WET (pitched) signals are as smooth as possible, allowing you to seamlessly incorporate pitch-bends into complex picking patterns as well as lead and melodic lines.

Input Type: 1/4” Unbalanced TS
Input impedance: 1MΩ
Maximum input level: 9 dBu
Output type: 1/4” Unbalanced TS
Output impedance: 100 Ω
Maximum output level: 9 dBu
Expression Input Type: 1/4” Unbalanced TRS (Exp out) / 1/4” Unbalanced TS (FSW in)
Input impedance (ring): 100 kΩ
Output impedance (tip): 220 Ω
Max input level: 20 dBu
Max output level: 20 dBu
MIDI Connector: 3.5 mm TRS (mini jack), Type-B
Type: Optically isolated input, RF filtered
Frequency response: 20 Hz to 20 kHz (±1 dB)
Signal to noise ratio: 90 dB (A weighted)
Operating temperature: 0º to 50º C
Power Supply Connector Type: 9V DC, center negative 2.1 x 5.5 mm plug
Input voltage: 9V DC
Input current: 220 mA
Power consumption: 2 W
Product Dimensions: WLH 220 x 110 x 86 mm (8.6 x 4.3 x 3.3 in)
Product Weight: 960 g (2.11 lb)
