Great Katana tone in a highly portable amp
Rich, full sound that far exceeds other amps in its class
Authentic multi-stage analog gain circuit and three-band analog tone stack
Three versatile amp types: Brown, Crunch, and Clean
Built-in tape-style delay for warm ambience
Aux input for jamming with music from a smartphone
Phones/recording output with cabinet voicing
Runs on six AA-size batteries or optional AC adapter
Specially Designed for Top-Quality Sound
Unlike typical small, battery-powered guitar amps that offer so-so sound quality, the Katana-Mini produces big, full tone that inspires you to plug in and play for hours at a time. BOSS’s comprehensive design approach includes a custom speaker, advanced hardware, refined circuitry, and special component selection, which all work together to produce maximum sound quality in a minimum footprint. The amp also incorporates BOSS’s decades of research in energy efficient design, providing class-defying power and punch from only six AA-size batteries.
Inspiring Tones, Ready to Rock
The Katana-Mini’s all-analog input circuitry includes multiple gain stages that drive three classic sound settings, offering the same cascaded gain approach found in high-end amp designs. This is what gives the Katana-Mini its satisfying tone and quick, interactive feel, with distortion that’s easily controlled with input volume and picking strength. Inspired by BOSS’s flagship Waza amp, the Katana-Mini’s Brown setting delivers expressive, high-gain tones rich with harmonics, perfect for heavy riffs and soaring solos. Crunch provides overdrive that’s ideal for rock rhythms and bluesy leads, while Clean offers up crisp, sparkling tones with punchy dynamic response.
Analog Tone Stack and Onboard Delay
In contrast to the limited EQs found in other small amps, the Katana-Mini comes equipped with a genuine three-band analog tone stack. This provides natural sound shaping via familiar bass, mid, and treble controls, just like the tone stack in a full-size stage amp. In addition, you can enhance your sound further with the Katana-Mini’s cool tape-style delay. Using the dedicated time and level knobs, it’s simple to dial in everything from subtle reverb-like ambience to long, warm delay repeats.
Jam at Home or Grab and Go
Thanks to the Katana-Mini’s advanced-yet-compact design, you can plug into serious guitar tone any time and any place. Weighing just under three pounds, it sits easily on a tabletop or shelf at home. And with the integrated handle and battery operation, it’s easy and convenient to grab the amp and play anywhere you want, indoors or out. With the aux input, you can even plug in your smartphone and jam along with your personal music library or tracks streamed from the web. And for private practice and recording situations, you’ll want to take advantage of the phones/recording output, which features special cabinet voicing for real mic’d amp tone.
| SPECIFICATIONS |
| Rated Power Output |
7 W |
| Nominal Input Level |
INPUT: -10 dBu (1 M ohm) AUX IN: -10 dBu (20 k ohm) |
| Speaker |
10 cm (4 inches) |

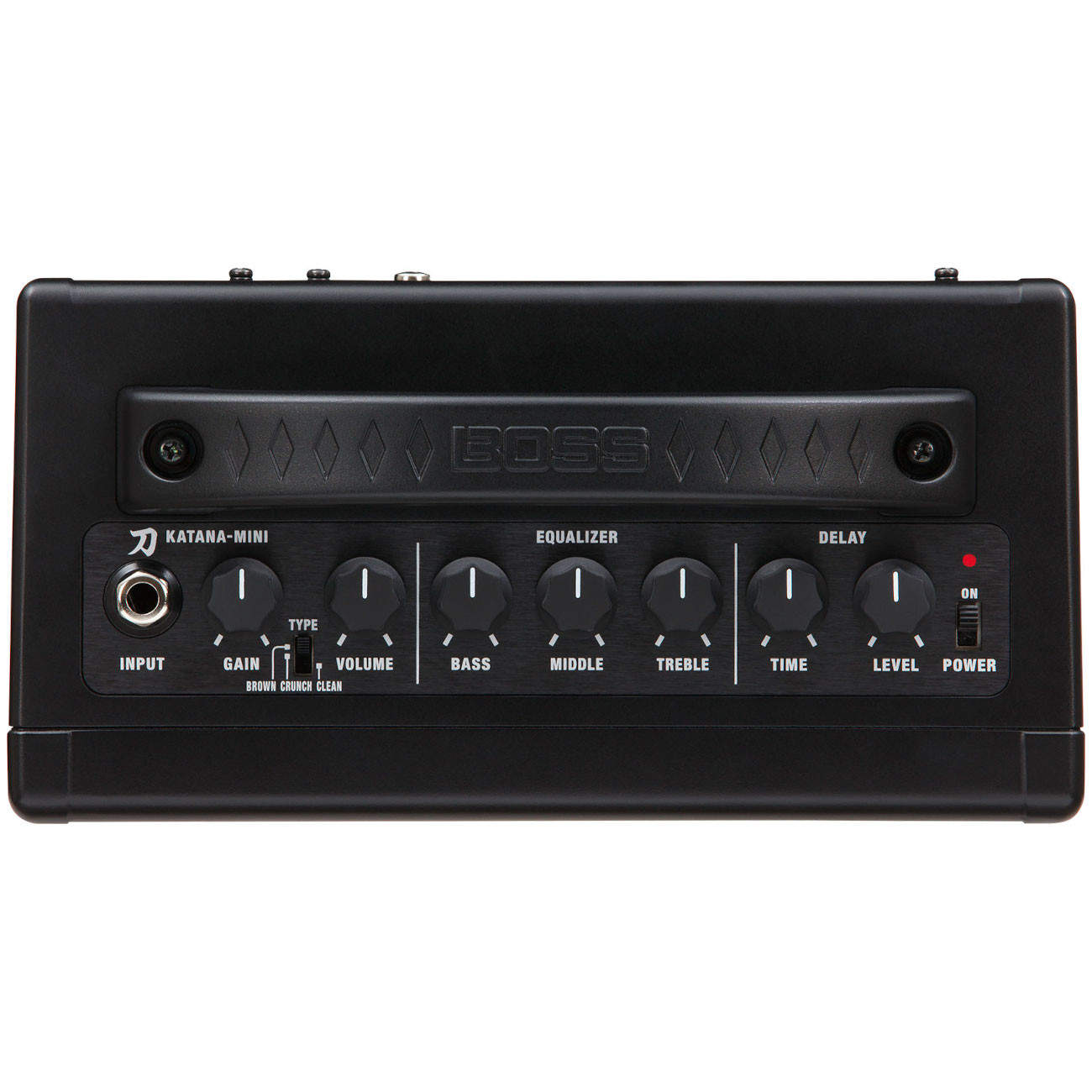

| Controls |
POWER switch TYPE switch |
| GAIN knob |
VOLUME knob
[EQUALIZER] BASS knob MIDDLE knob TREBLE knob
[DELAY] TIME knob LEVEL knob |
| Indicators |
POWER |

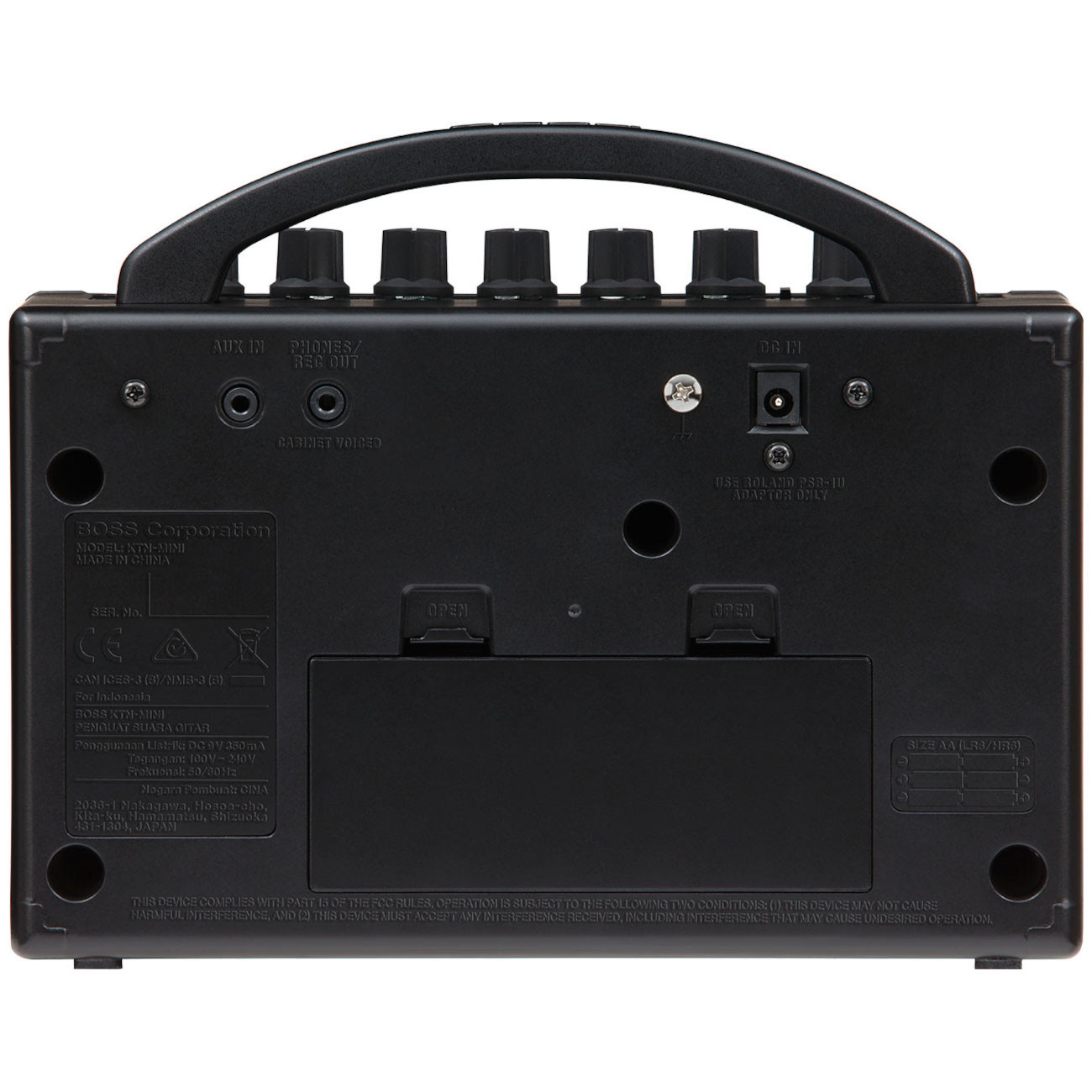

| Connectors |
INPUT jack: 1/4-inch phone type AUX IN jack: Stereo miniature phone type PHONES/REC OUT jack: Stereo miniature phone type
DC IN jack |
| Power Supply |
Alkaline battery (AA, LR6) x 6 Rechargeable Ni-MH battery (AA, HR6) x 6 or AC adaptor (sold separately) |
| Current Draw |
350 mA |
| Expected battery life under continuous use |
Alkaline battery: Approximately 7 hours Rechargeable Ni-MH battery: Approximately 9 hours (When using batteries having a capacity of 2500 mAh.) * This can vary depending on the capacity of the batteries and the conditions of use. |
| Accessories |
Owner's manual Alkaline battery (AA, LR6) x 6 |
| Option (sold separately) |
AC adaptor (PSB series) |
| SIZE AND WEIGHT |
| Width |
230 mm 9-1/16 inches |
| Depth |
116 mm 4-5/8 inches |
| Height |
181 mm 7-1/8 inches |
| Weight (including battery) |
1.2 kg 2 lbs 11 oz |
