A Unique Stereo Chorus

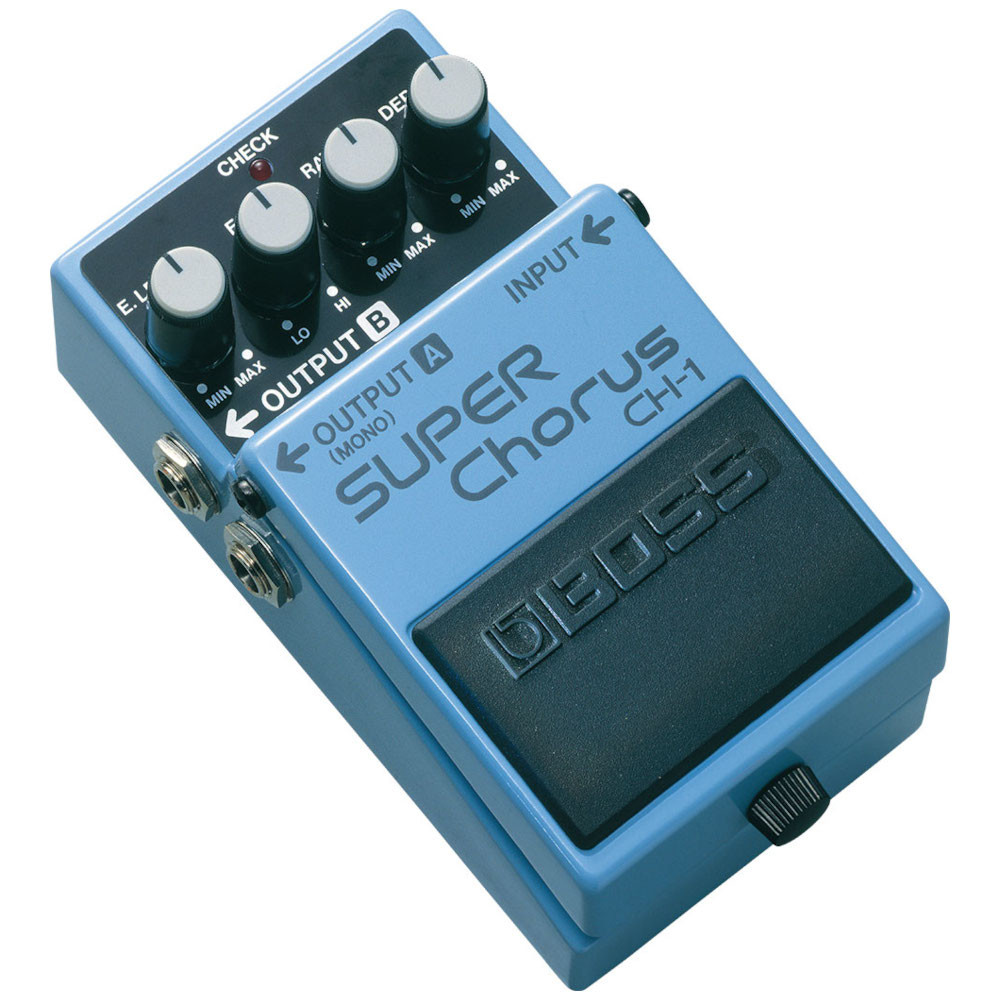

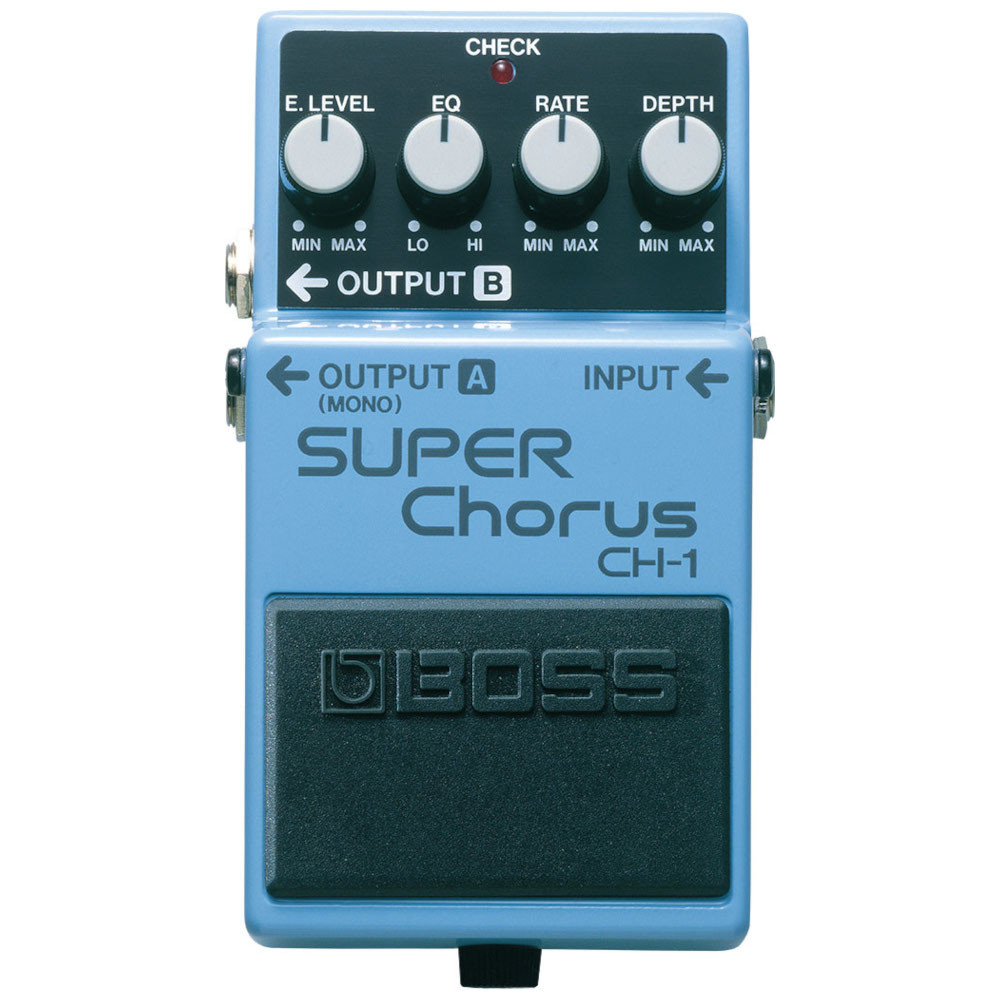

The CH-1 Super Chorus pedal delivers a clean classic chorus sound with crystal-clear highs and a unique stereo effect, variable between left and right speakers.
Free Shipping on Orders over 175€
+351 211 653 812 (National landline network)
Hassle Free Returns
3 year Warranty
Classic BOSS chorus pedal with clean, brilliant sound for guitar and keyboards
Effect Level, EQ, Rate and Depth knobs allow for precise shaping of sound
Features Mono input and Stereo outputs for connection to dual amps
BOSS five-year warranty
| SPECIFICATIONS | |
|---|---|
| Nominal Input Level | -20 dBu |
| Input Impedance | 1 M ohm |
| Nominal Output Level | -20 dBu |
| Output Impedance | 1 k ohm |
| Recommended Load Impedance | 10 k ohms or greater |
| Bypass | Buffered bypass |
| Controls | DEPTH knob RATE knob EQ knob E.LEVEL knob Pedal switch |
| Indicator | CHECK indicator (Used for indication of check battery) |
| Connectors | INPUT jack: 1/4-inch phone type OUTPUT A/B jack: 1/4-inch phone type DC IN jack |
| Power Supply | Alkaline battery (9 V, 6LR61) AC adaptor (PSA series: sold separately) |
| Current Draw | 55 mA |
| Expected battery life under continuous use | Alkaline: Approx. 6 hours *These figures will vary depending on the actual conditions of use. |
| Accessories | Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information") Alkaline battery (9 V, 6LR61) |
| Options (sold separately) | AC adaptor: PSA series |
| SIZE AND WEIGHT | |
|---|---|
| Width | 73 mm 2-7/8 inches |
| Depth | 129 mm 5-1/8 inches |
| Height | 59 mm 2-3/8 inches |
| Weight (including battery) | 420 g 15 oz |
