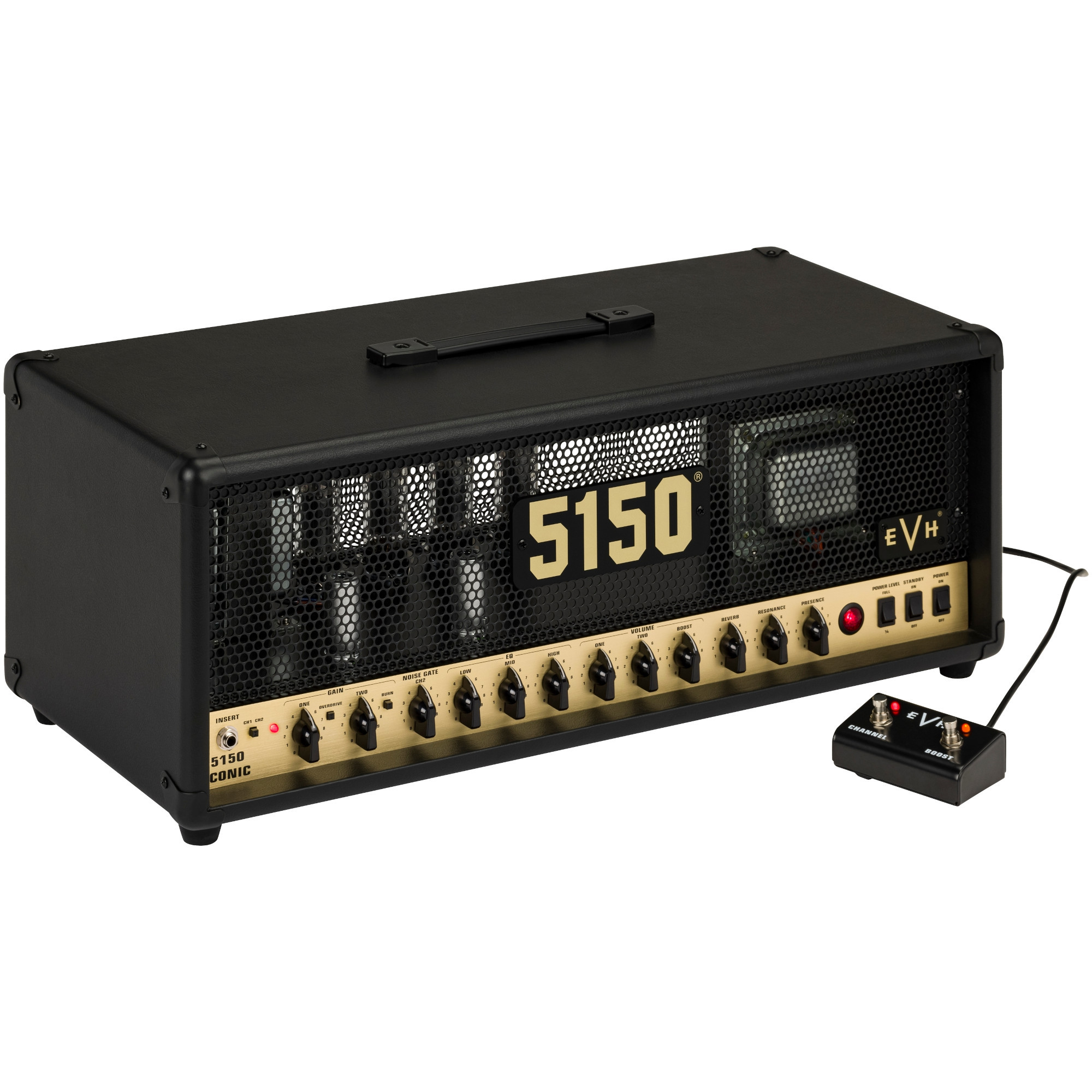

EVH 5150 Iconic Series 80W EL34 Head

Each channel houses its own gain and volume controls, allowing for level-matching the volume when switching between the clean and high gain channels. The channel two noise gate's quick attack suppresses any hiss while ensuring all staccato riffing is articulate and crisp, not choked and choppy. The Boost control allows you to add another 10Db of foot-switchable volume to your tone - perfect for ensuring your solos cut through the mix. The control panel also includes shared EQ (Low, Mid and High), global resonance and presence knobs to adjust the low- and high-end aspects of your tone, and a global reverb control to add the perfect amount of bounce and decay for any room.

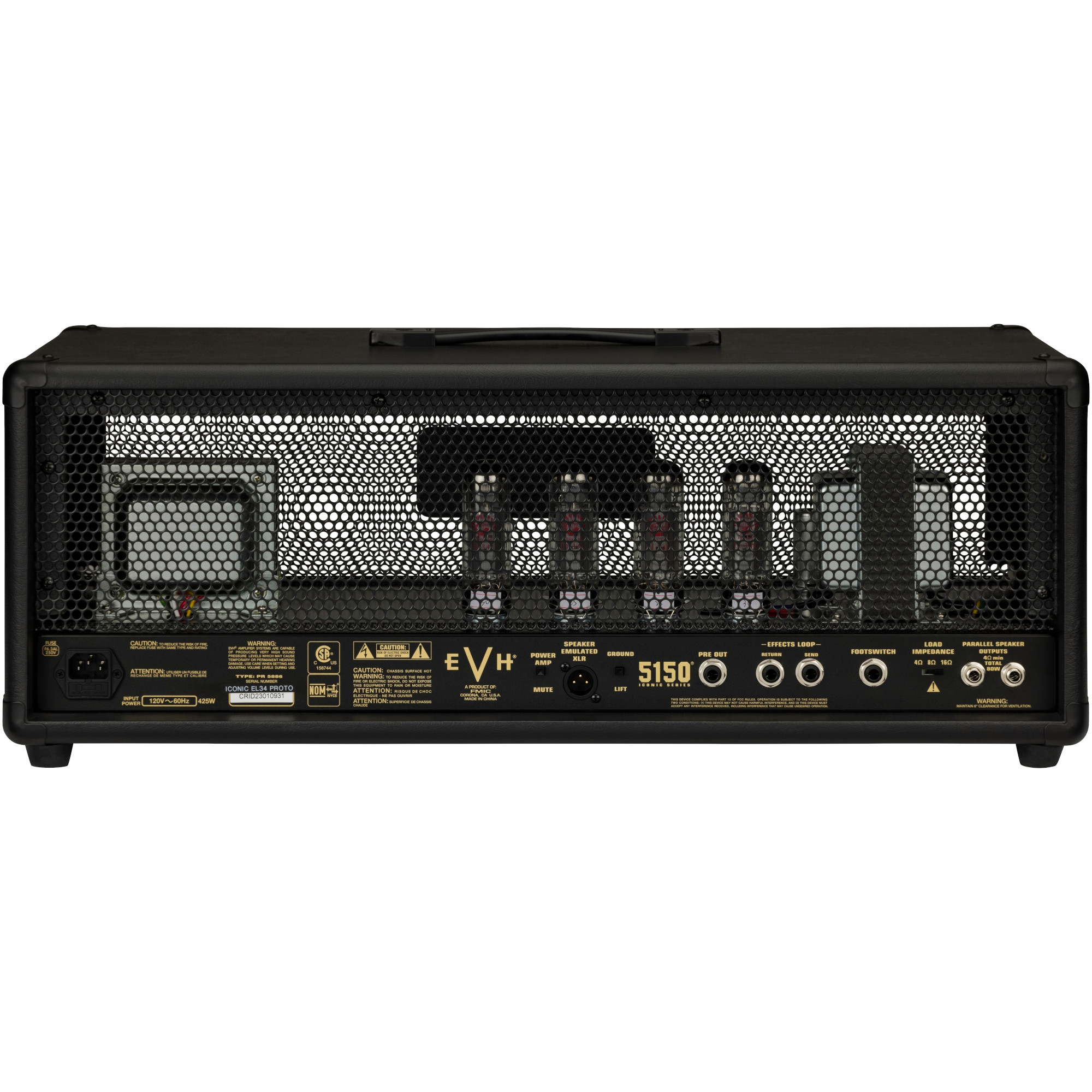

Other features include a two-button footswitch, effects loop, dual parallel speaker output jacks, ¼ power switch to reduce wattage - allowing you to crank the amp and still preserve tone but without destroying your neighbor's solitude, and a speaker-emulated DI XLR with power amp mute for accurate all-tube EVH tone for recording direct or using through any PA system.

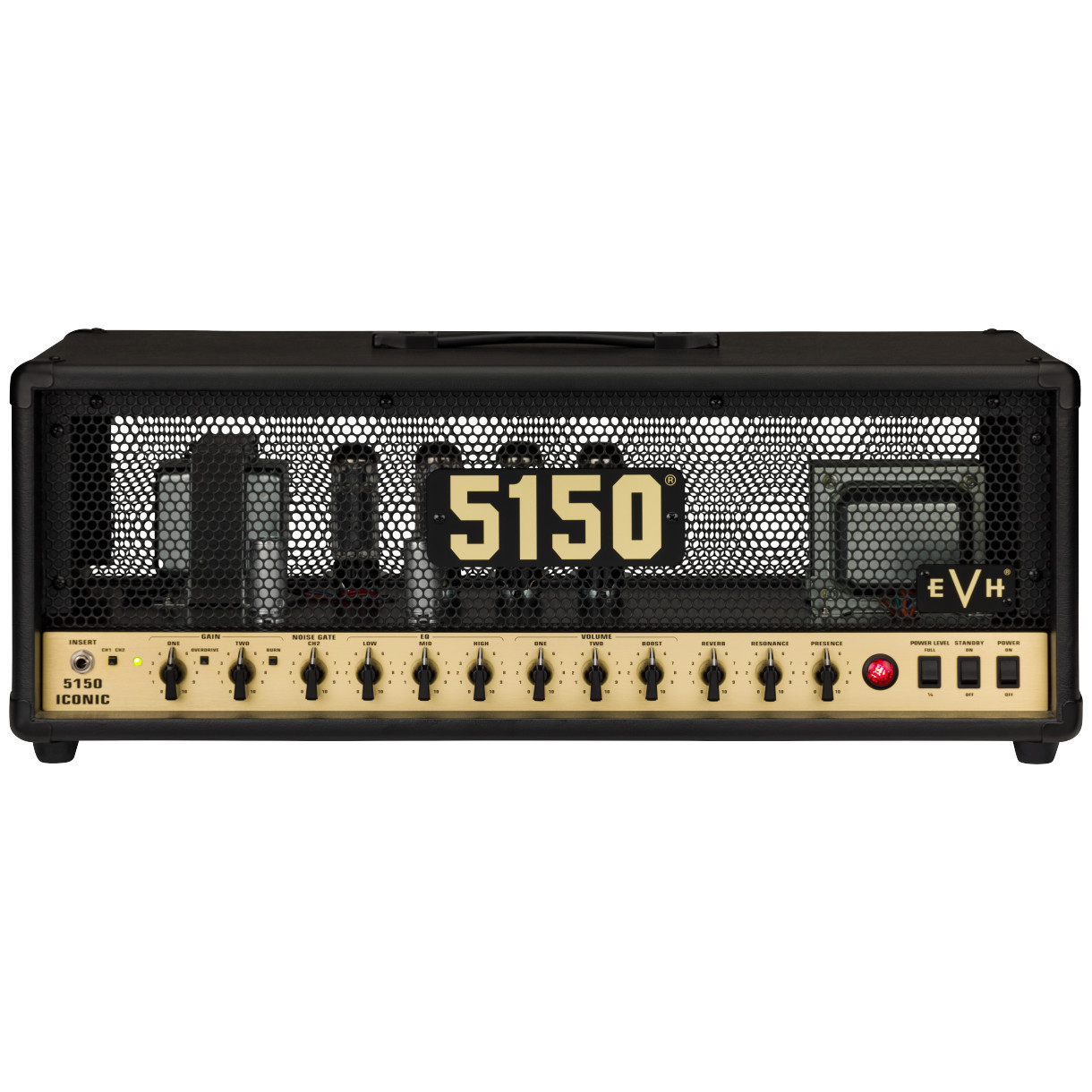

Sporting sophisticated and distinctive EVH style, the 5150 Iconic Series 80-watt head is wrapped in Black textured vinyl with a brushed gold anodized aluminum front panel and black steel grille featuring gold and black 5150 and EVH logo badges. This head is finished off with vintage-style chicken-head knobs, red LED jewel indicator and molded black plastic top handle.
Electronics
Controls: Channel 1: Gain w/ Overdrive Switch; Channel 2 Gain w/ Burn Switch; Noise Gate Channel 2: Low, Mid, High EQ; Channel 1/ Channel 2 Volume, Master Boost, Global Reverb, Resonance, and Presence
Control Panel: Channel 1: Gain w/ Overdrive Switch; Channel 2: Gain w/ Burn Switch; Noise Gate (Channel 2); Shared Low, Mid, High EQ; Channel 1/Channel 2 Volume; Master Boost; Global Reverb, Resonance and Presence
Inputs: One - 1/4"
Headphone Jack: None
Line Out: Two - (One XLR and One 1/4")
Channels: Two - Clean/Overdrive and Lead/Burn
Effects: Reverb
Effects Loop: 1/4" (Send/Return)
Connection Type: 1/4"
Voltage: 230V EUR
Wattage: 80 Watts

Hardware
Control Knobs: Black Chicken-Head Style Pointer
Amplifier Covering: Black Textured Vinyl
Cabinet Material: MDF
Grille Cloth: Black
Handle: Molded Plastic Strap with Black Powder Coated Caps
Amplifier Jewel: Red LED Jewel
Speaker Jack: Two - 1/4" Parallel
Front Panel: Gold Anodized

Tubes
Power Tubes: 4 X EL34
Preamp Tubes: 2 x ECC83S
Rectifier: Solid State

Accessories

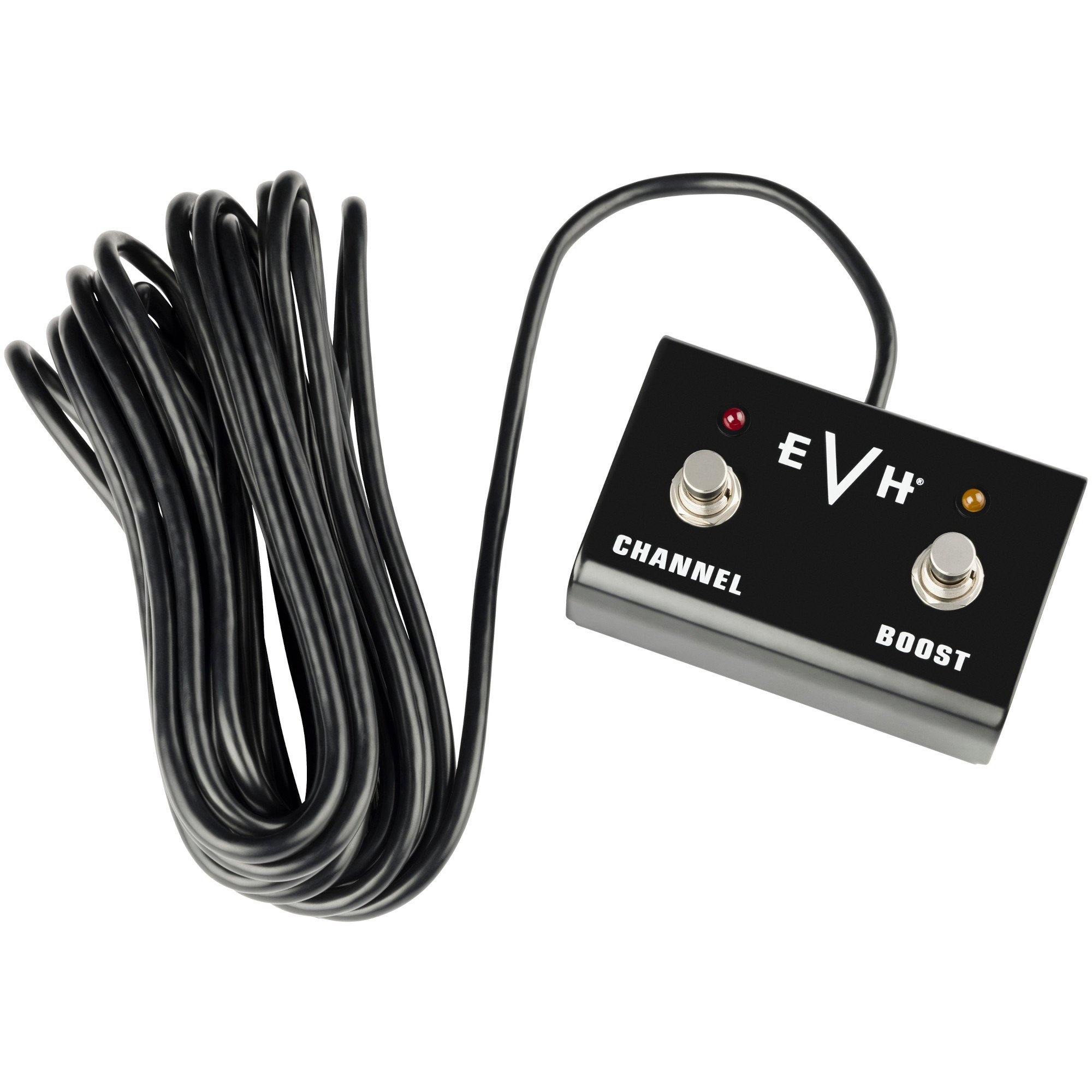

Footswitch: 2-Button Footswitch Included
Footswitch Connection Type: 1/4"
Included Accessories: IEC Power Cable 2-Button Footswitch

Height: 10.5" (26.7 cm)
Width: 27" (68.6 cm)
Depth: 11.6" (29.4 cm)
Weight: 39 lbs. (17.7 kg)
