: FT-ODL-1-CS
  • The unit features a solid die-cast case with laser engraving. Each unit has a unique, rugged surface finish.
  • Equipped with a ROCK/JAZZ switch for toggling gain and frequency characteristics (Normal Channel).
  • Features a "GLASS" switch to bypass the TONE circuit and achieve a glass-like sound (Normal Channel).
  • Independent output level adjustments for Normal Channel and Drive Channel.
  • Incorporates the HTS (Holistic Tonal Solution) circuit, which differs from traditional buffer circuits. It maximizes the sound characteristics of the guitar while performing impedance conversion, achieving a balance between "sound" and "low noise." The HTS circuit prevents sound quality degradation even when the effect is turned off. Additionally, the output signal is in phase with the input signal, eliminating concerns about phase inversion.
In Stock
€471.21
Tax included (21%)


  • Input Impedance: 500kΩ or higher
  • Output Load Impedance: 10kΩ or higher

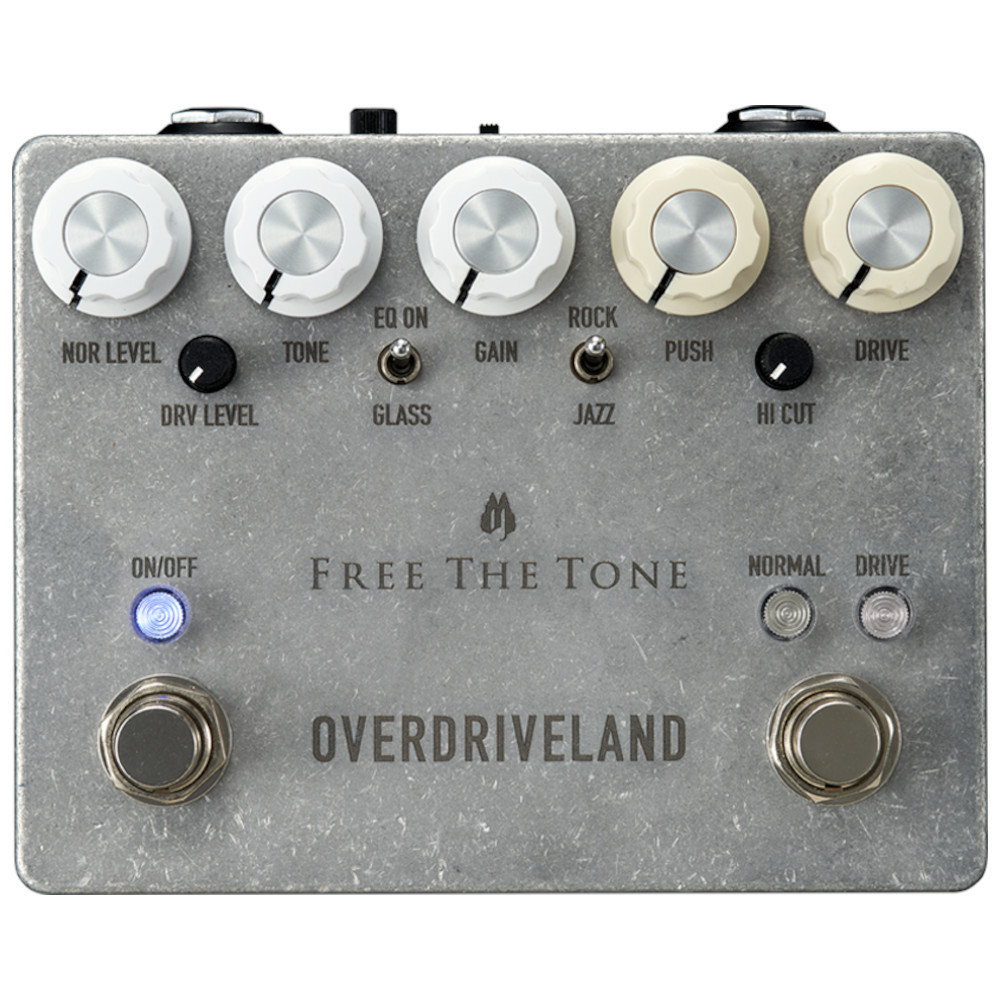

  • Controls: NOR LEVEL, DRV LEVEL, TONE, GAIN, PUSH, HI CUT, DRIVE, EQ ON/GLASS switch, ROCK/JAZZ switch, DC9V/VARIABLE switching switch, voltage adjustment trim

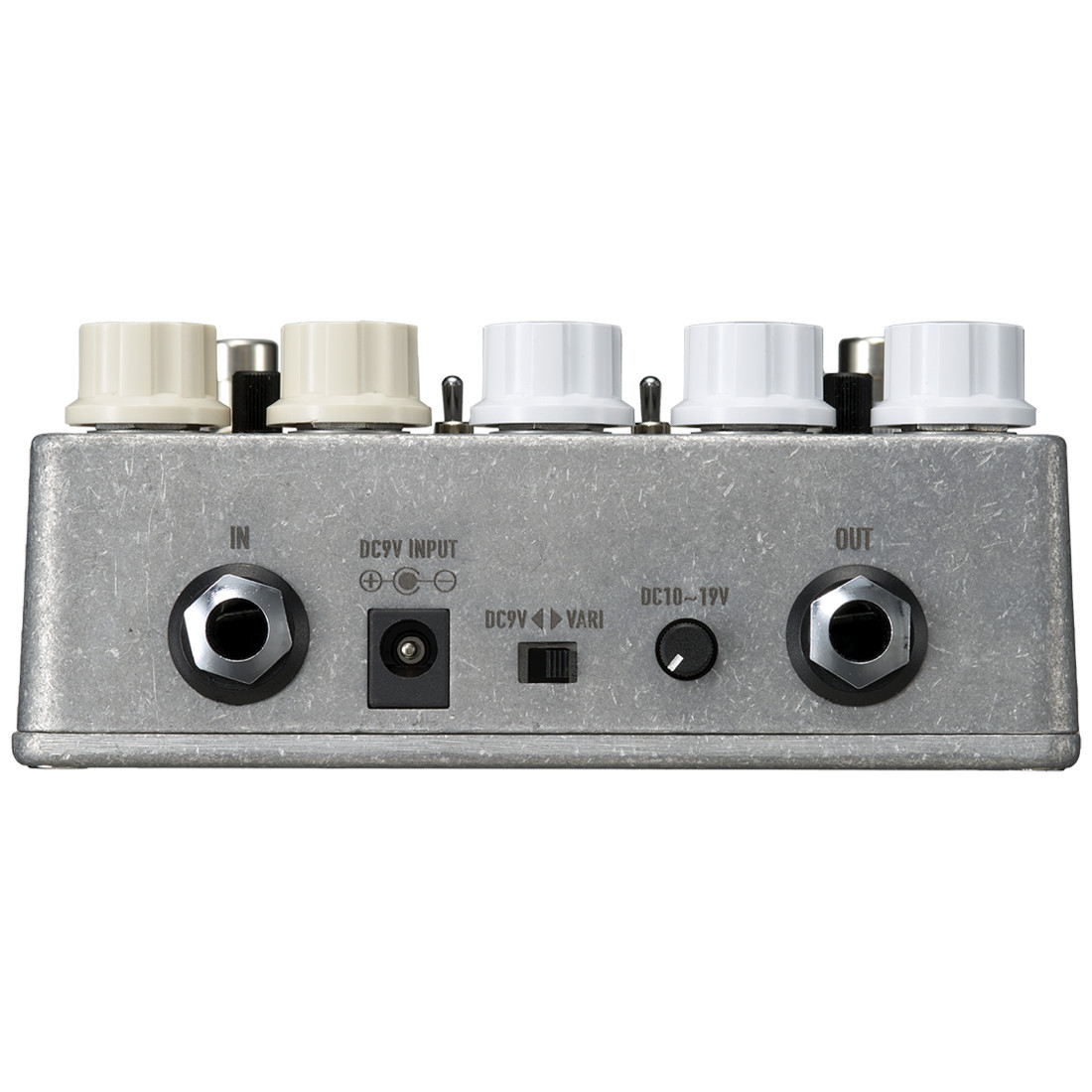

  • Connectors: 1/4-inch standard phone jacks (input, output), DC9V input jack (AC adapter jack)
  • Power Supply: AC adapter
  • Current Consumption: DC9V 95mA　 *When turning on the power, a significant current flows, so please use a power supply that can deliver a current of 200mA or more.
  • Size: 97(D) × 120(W) × 51(H)mm (including protrusions like footswitches and jacks)
  • Weight: Approximately 420g (excluding battery)
  • Accessories: Warranty card, Website Access card, Safety precaution, 4 x Rubber feet.
Type
Overdrive
FT-ODL-1-CS
