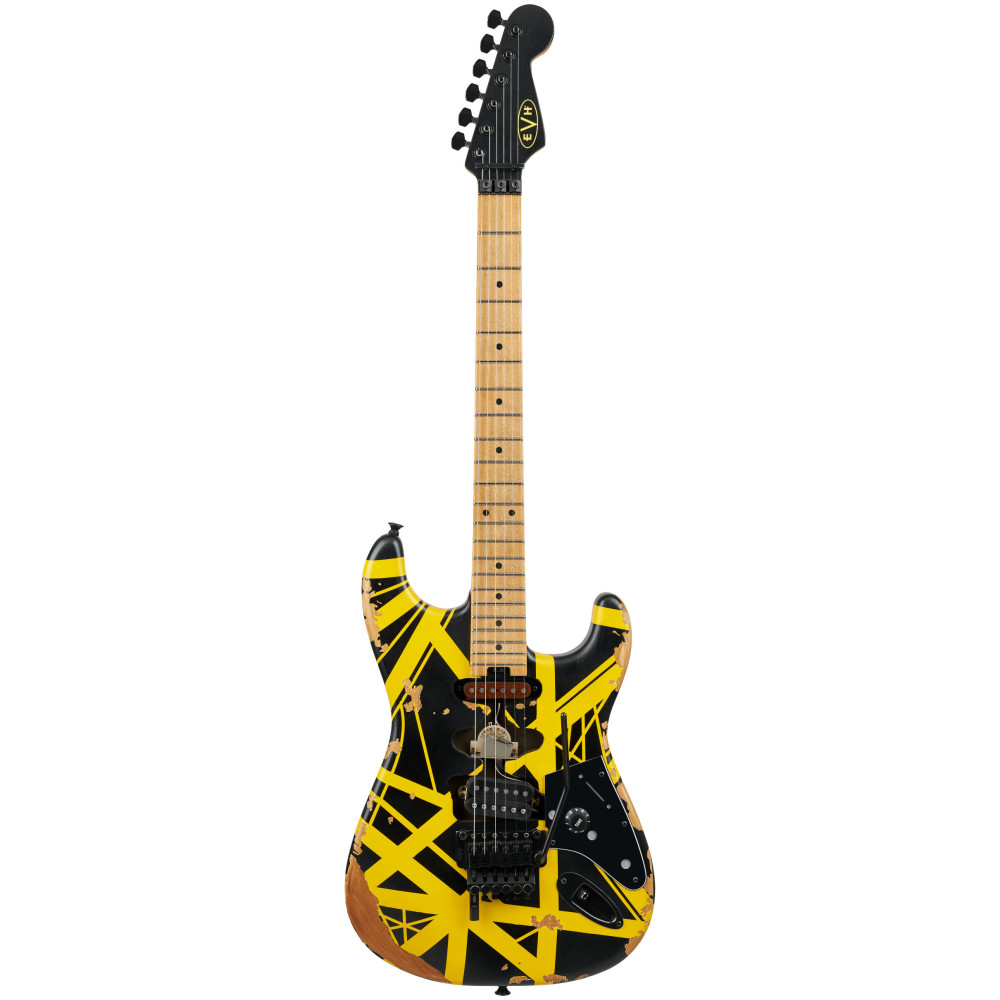

EVH Limited Edition Striped Series Frankenstein™ Frankie

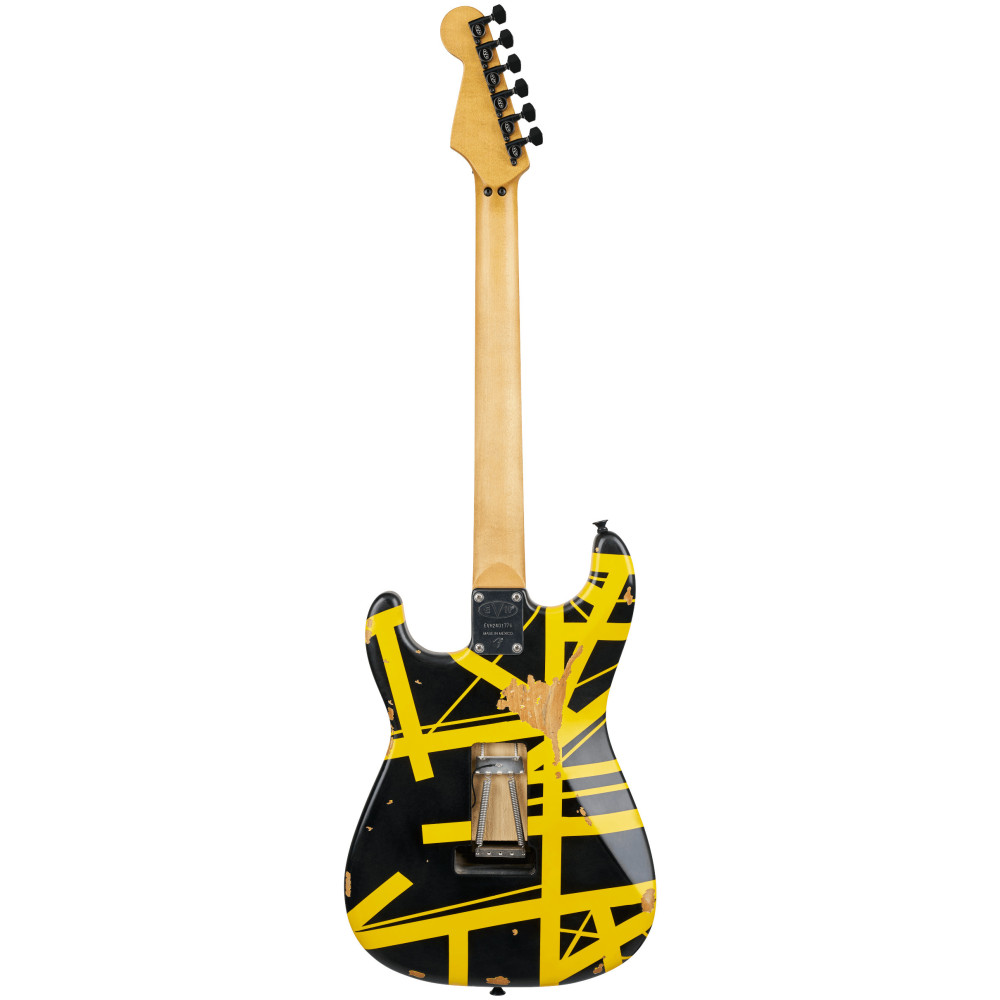

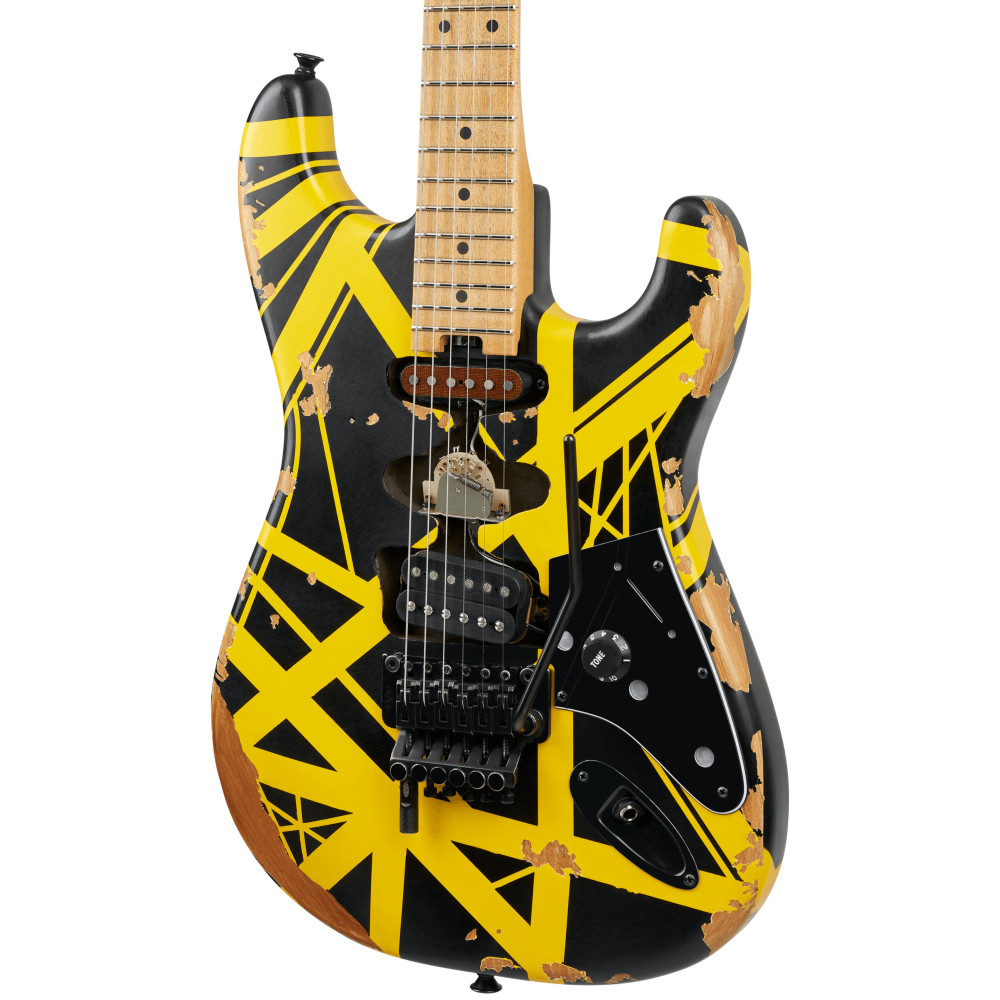

Sporting Eddie's black and yellow paint job and an aged look, the all-new Frankie features a basswood Stratocaster®-style body paired to a graphite-reinforced quartersawn maple neck. An oiled finish on the back of the neck allows for hours of playing comfort, while the 12"-16" compound radius maple fingerboard with 22 jumbo frets was designed for fast and furious playing styles.
Routed for an HSS pickup configuration just like Eddie's original, Frankie features an EVH Wolfgang® humbucking bridge pickup with a red phenolic bobbin EVH Strat® neck pickup (selectable via push/push volume knob) and a dummy five-way blade housed in the middle position.
A sturdy and dependable EVH-branded Floyd Rose® locking trem and Floyd Rose locking nut work in tandem for precise tuning even with extreme changes in pitch, while the EVH D-Tuna® retunes to drop-D and back with strict accuracy at the flick of a finger.
Other unique features include a black skirted Strat-style single push/push volume control knob (labeled "tone"), custom black pickguard, distressed black hardware, oversized strap buttons and EVH neck plate.

Neck

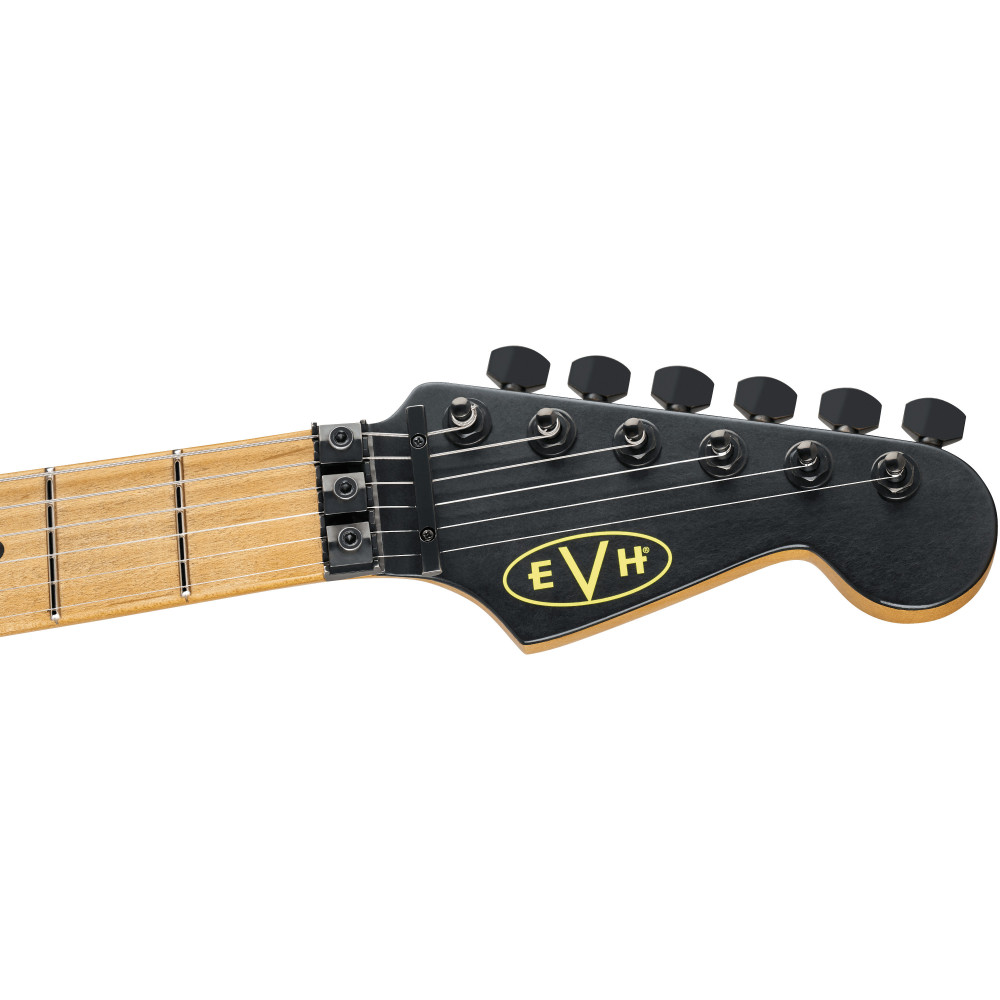

Headstock: Licensed Fender® Stratocaster®
Neck Material: Quartersawn Maple
Neck Finish: Oiled
Neck Shape: EVH® Modified "C" Backshape
Neck Construction: Bolt-On with Graphite Reinforcement
Neck Thickness: .790" at 3rd fret & .825" at 12th fret
Fingerboard Radius: 12"-16" Compound Radius (304.8 mm to 406.4 mm)
Fingerboard Material: Maple
Position Inlays: Black Dot
Number of Frets: 22
Truss Rod: Two-Way Adjustable
Truss Rod Nut: Heel-Mount Truss Rod Adjustment Wheel
String Nut: Floyd Rose® R3 Locking
Nut Width: 1.6875" (42.86 mm)
Nut Material: Floyd Rose® R3 Locking
Fret Size: Jumbo
Scale Length: 25.5" (648 mm)

Body
Body: Basswood
Body Finish: Satin Lacquer
Body Shape: Stratocaster®

Hardware
Bridge: EVH®-Branded Floyd Rose® Locking Tremolo with EVH® D-Tuna®
Tremolo Block: Brass
Pickguard: Black Custom Frankie
Pickup Covers: Black
Control Knobs: Black Stratocaster®-Style Skirt (Labeled "Tone")
Hardware Finish: Black

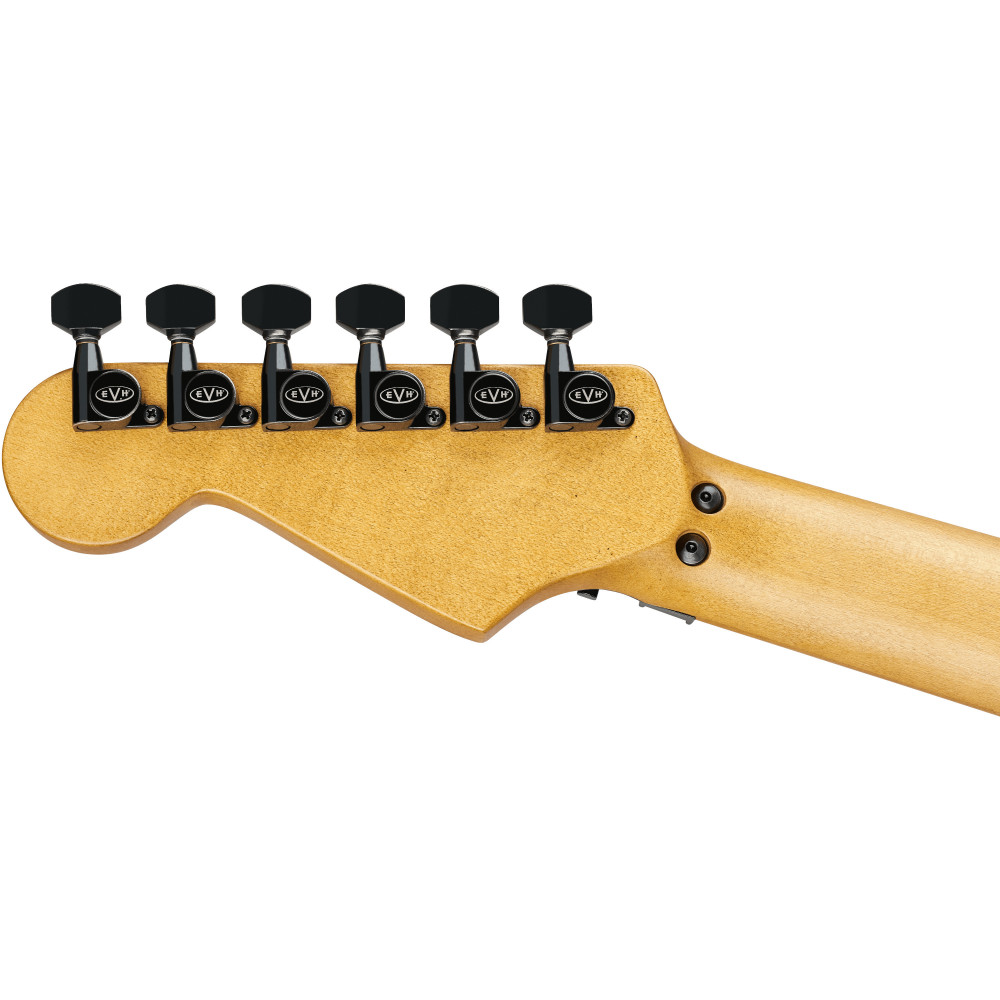

Tuning Machines: EVH®-Branded Gotoh®
String Trees: Floyd Rose® Retainer Bar
Strings: EVH® Nickel Plated Steel (.009-.042 Gauges)
Tremolo Arm: Floyd Rose® 1000 Series Locking
Neck Plate: 4-Bolt Standard
Strap Buttons: Oversized

Electronics
Bridge Pickup: Direct Mount EVH® Wolfgang® Humbucking
Middle Pickup: N/A
Neck Pickup: Dummy Strat® Pickup
Pickup Configuration: HSS
Controls: Volume (Push/Push for Pickup Switching)
Switching: Push/Push: Down = Bridge Pickup, Up = Neck Pickup
