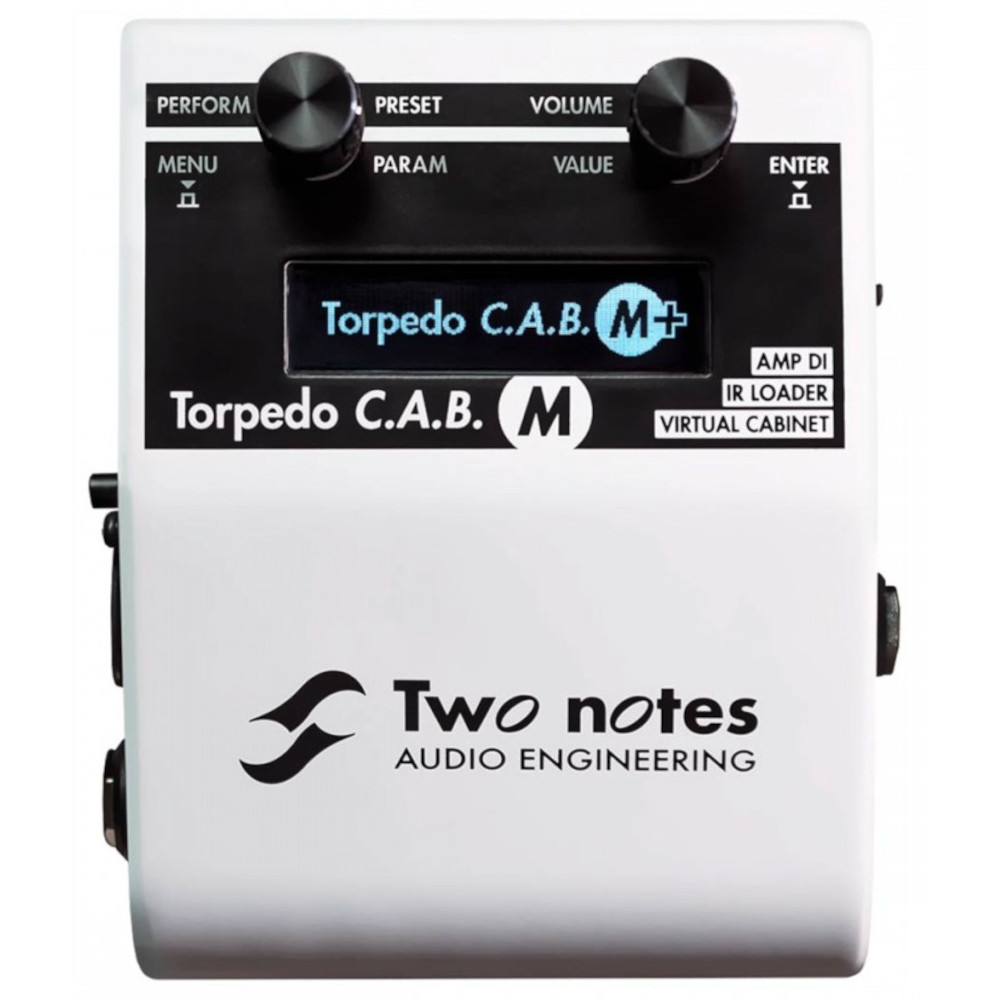

Two Notes Torpedo C.A.B. M+

Shape your tone directly on the hardware or control your C.A.B. M+ via your computer with Torpedo Remote USB in a home / studio environment. For convenient tone tweaking on stage, you can also pair your Torpedo hardware with your phone (or tablet) via Wireless Torpedo Remote (iOS / Android).
No other pedal offers such universal control of the miking chain - with dual miking available on every cabinet you may never use a real mic again. With our unique Dynamic IR / Virtual Cabinet technology – each cabinet contains the equivalent of 160,000 static IRs.

Torpedo C.A.B. M+ comes with a carefully picked selection of 32 Two notes cabinets, a clean preamp based on an all original '74 SilverFace B'man, tube poweramp emulations and a wide range of effects designed to shape your tone the way you hear it in your head.

Input / Output
Amp/Inst/Line Input:
1/4? Jack balanced (TRS)

In Level Switch*:
+12dB: Max level: 4 dBu, Impedance: 1 MOhms
0dB: Max level: 16 dBu, Impedance: 57 kOhms
-24dB: Max level: 40 dBu, Impedance: 47 kOhms
*Affects input sensitivity and impedance

Aux In:
1/8? (3.5mm) TRS Jack

Speaker output*:
1/4? Jack balanced (TS)
*Unprocessed, unbuffered, directly connected to Amp In

DI output:
XLR balanced
Max level: 10 dBu
Impedance: 300 Ohms

Line output:
1/4? Jack balanced (TRS)
Max level: 10 dBu
Impedance: 300 Ohms

Headphones output:
1/8? Mini-Jack (TRS)

USB connector:
USB 2.0 Micro-B

Memory card:
256Mb Micro-SD included
Up to 32Gb cards supported
Digital Audio
AD/DA Converters:
Studio-grade 24 bits / 96 kHz

Bandwidth (-1dB):
30 Hz – 19 kHz

Signal-to-noise ratio:
91 dB

Internal Processing:
32 bits floating-point

Latency:
2.2 ms (Line Input to Line Output)

Power
Power adapter:
DC Jack 2.1mm, negative center

Input voltage:
12V DC

Power consumption:
Approximately 2W

Current consumption:
200mA
