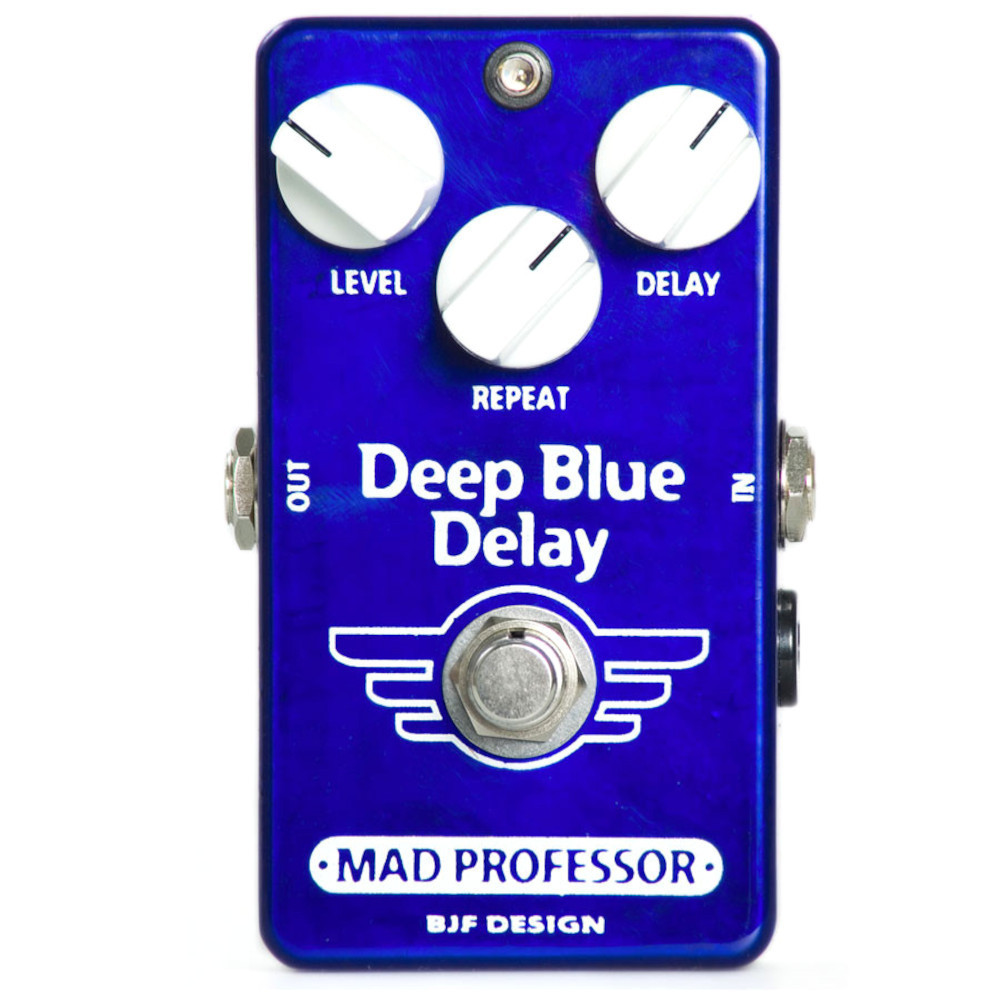

Mad Professor Deep Blue Delay

The delay is specially designed to work well with distorted tone, as this is the most critical application, where delays often fail.

You can use the pedal before or after distortion. As such, it will work exceptionally well on clean sounds where requirements are less stringent, especially in terms of echo bandwidth and repeat formation.

The delay tone has been carefully tuned with lot of attention to the first critical reflection and how the repeats decay.

Deep Blue Delay is kept small (Width x Length x Height :69mm x 111mm x 50mm including jacks and knobs) containing just the basic delay features; Delay Time, Delay Level and Repeat controls. It was designed to work as an ambience delay; like that of a vintage tape echo and the repeat formation was specifically designed to allow easy setting and less critical setting of delay time. With delay times higher than 120ms, the delay time is sometimes set on the beat or on a multiple of the beat. Deep blue handles this by not giving full range repeats, but a tuned response that don’t need to be on the beat to sound good.

Controls

LEVEL: Sets the level of delayed signal mixed with straight guitar tone, fully CCW there is only straight (un-effected) guitar signal heard and fully CW gives the loudest delay.
DELAY: Controls the delay time from 25ms (fully CCW) to 450ms (fully CW)
REPEAT: Controls the repeats of the delay signal, fully CCW gives one repeat and at fully CW you get infinite feedback.
