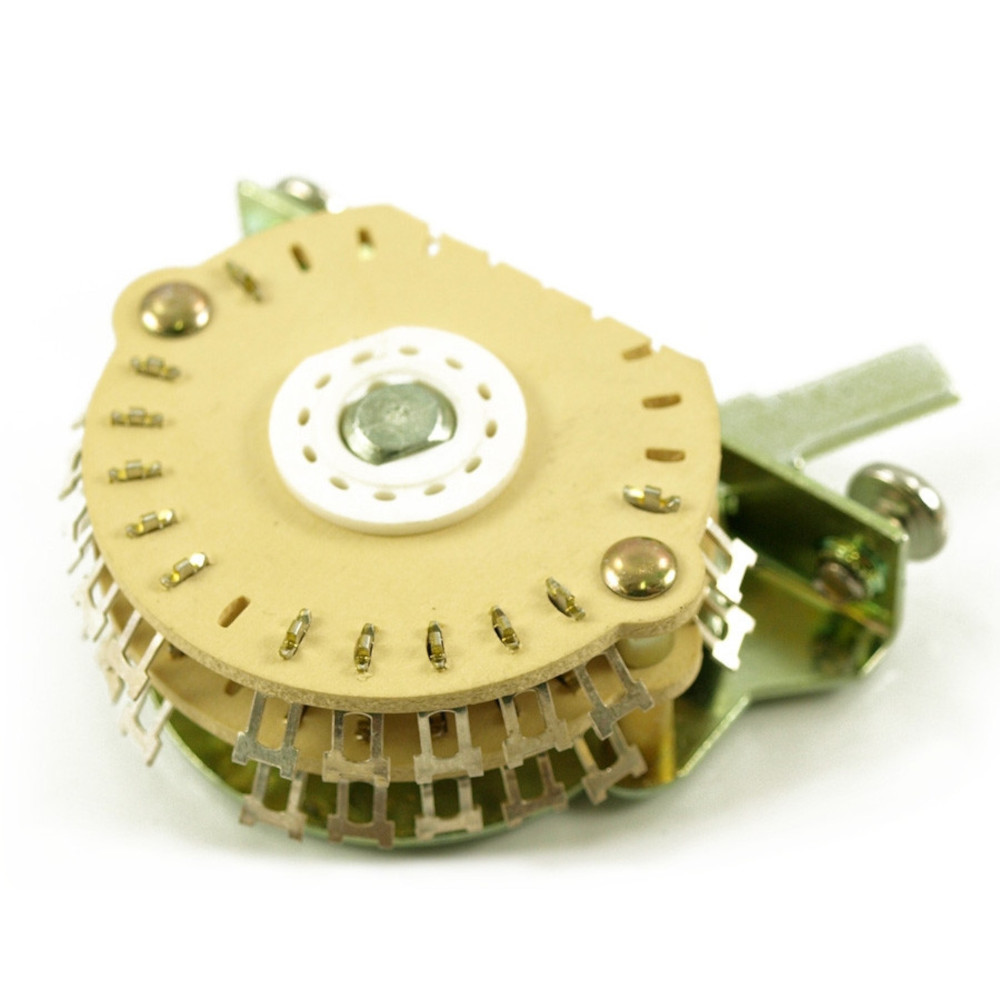

The new improved Oak Super Switch by Electroswitch lets you wire guitars in imaginative ways not possible with our other 5-way switches. It's a special 4-pole switch with six lugs per pole (one common and one each for the five lever positions. This gives you unparalleled control over pickup and coil selection.
This switch has been redesigned by Kent Armstrong with tabs turned inward as well as reducing the spacing to require minimal cavity width to allow for installation within both Stratocaster and Telecaster cavity routs. The added terminals and double wafer allows a level of flexibility and control that is not possible with traditional lever switches. Now you have the option of coil cuts, series/parallel combinations, phase reversal and more.
Terminal assignment: There are a total of 24 solder terminals (lugs) on this switch. The switch is divided into four separate circuits, or poles, and each pole has six lugs. Lug 0 is the common which is connected to other lugs depending on the lever's position. The five other terminals on each pole correspond to the five positions of the switch. Lug #1 = position 1, Lug #2 = position 2, etc.
Important Specs and Dimensions:
Oak® 4 pole, double wafer 5 way lever switch
Standard U.S. size. Fits 1/16 in. x 1-1/16 in. slot.
1-5/8 in. center to center screw spacing.
1-3/8 in. cavity depth required
