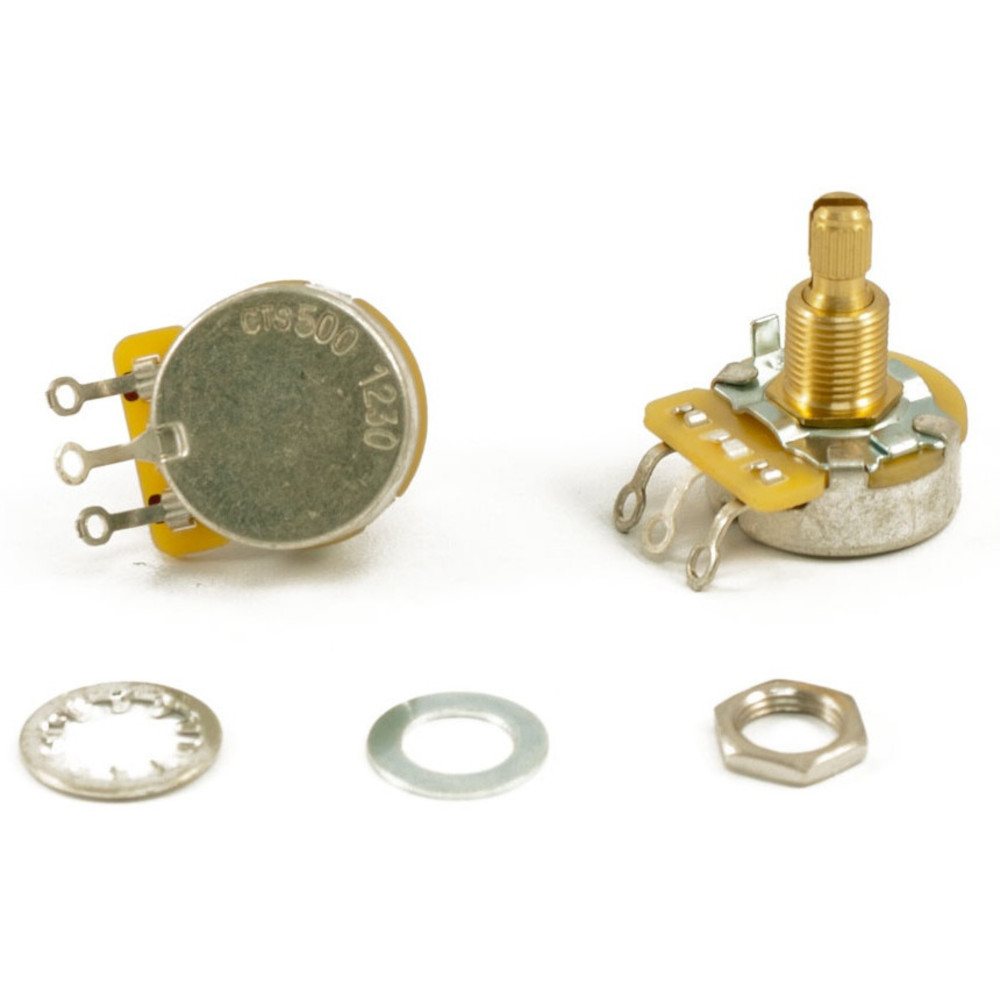

These are developed using 9% +/- tolerances and a value at 10% over the standard 500K rating (550K). This ensures you not only optimum performance but guarantees your potentiometers will always be at least the value stated unlike many others using 20% tolerances where you can be over spec but in most cases way under the specifications you need to ensure good tone from your pickups. We added brass components and a high quality wiper versus what comes standard on most run of the mill pots to ensure long life, quality and consistent performance.
Important Specs and Dimensions:
Tolerance = +/- 9%
Can Size = 15/16 in. radius X 3/8 in. height
Bushing Threads = 3/8-32
Bushing Height = 3/8 in.
Shaft Type - split
Shaft Diameter = .238 in (6.3mm)
Spline Count = 24 (NOT metric)
Shaft Length - 3/8 in.
Hole size requirement = 3/8 in.
Value = 550K Ohms
