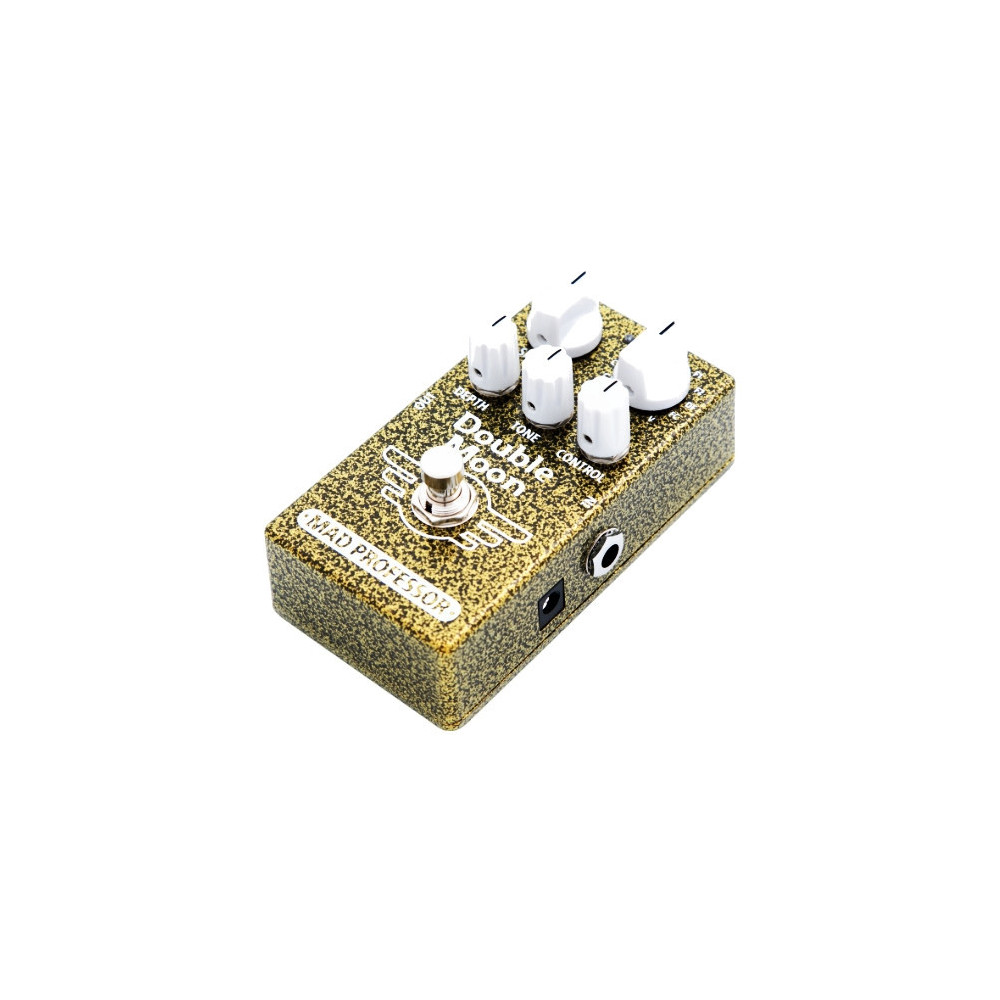

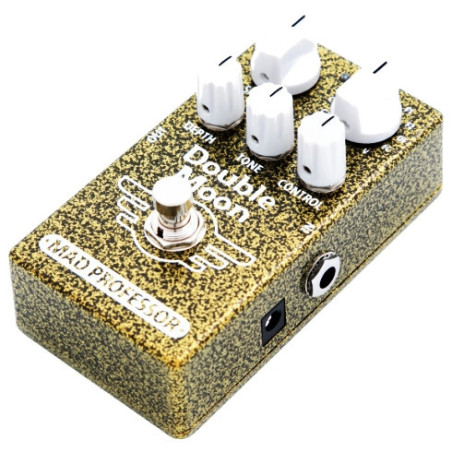

Mad Professor Double Moon Chorus

Double Moon pedal has 11 carefully designed modes that will let you dial in, not only all of the classic modulation effects, but far beyond that. All of the sounds are easily reached from a rotary switch: 3 chorus effects, 3 dual chorus effects, 3 flanger effects, flanger+chorus and a vibrato.

You can further on fine tune the LFO wave or Regen depending on the mode by the Control knob. The Depth knob will let you dial in the desired amount of the effect and the Speed knob will control the speed of the effect.

Modulation effects from mild to deep, motionless to faux-Leslie type, it ́s all there with the added Tone control!

FEATURES

● Adjustments for sounds: Speed, Depth, Tone
● Sound dependent control: Modulation waveshape, regen or speed difference between choruses
● True analogue bucket brigade signal paths
● True bypass
● Power supply or battery operated. Due high current consumption battery operation time may be only few hours with fresh battery.

INPUTS AND OUTPUTS
Mono input
Mono output
9VDC power supply input, 2.1mm plug center negative and positive sleeve

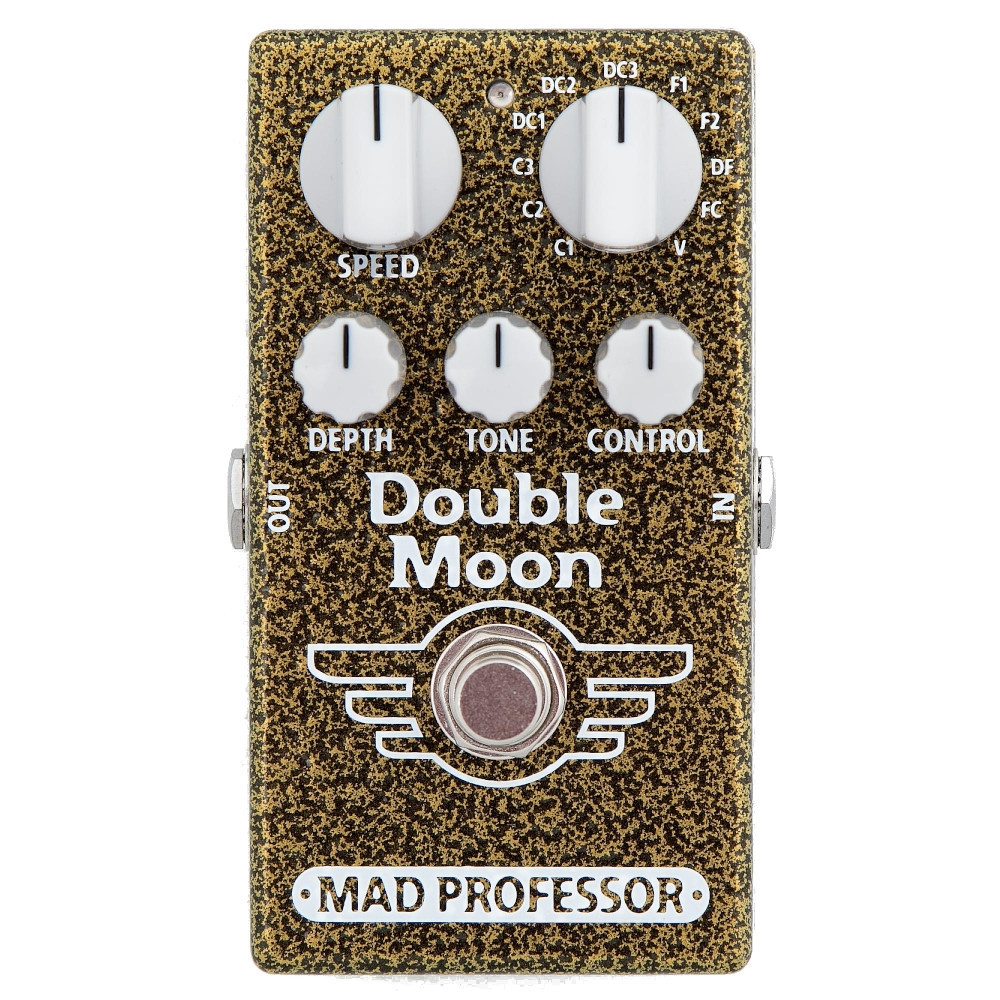

CONTROLS
MODE: Selects the active modulation sound
SPEED: Controls the speed of modulation effect
DEPTH: Controls the depth of effect
TONE: Adjusts the attenuation of high frequency tone in effect
CONTROL: Sound dependent control: Modulation waveshape, regen or speed difference between choruses

TECHNICAL SPECIFICATION
Power supply or battery operated. Supply voltage range 8.5V to 12V
Current consumption 85mA at 9VDC
Input impedance 500kΩ
Output impedance 1kΩ
Dimensions 113 x 65 mm
Weight 300g

LED STATES
LED OFF: Effect is off
LED ON: Effect is on
RAPID LED BLINKING: Supply voltage is too high and effect is OFF to protect internal circuits
SLOW LED BLINKING: Supply voltage is too low and effect is OFF
