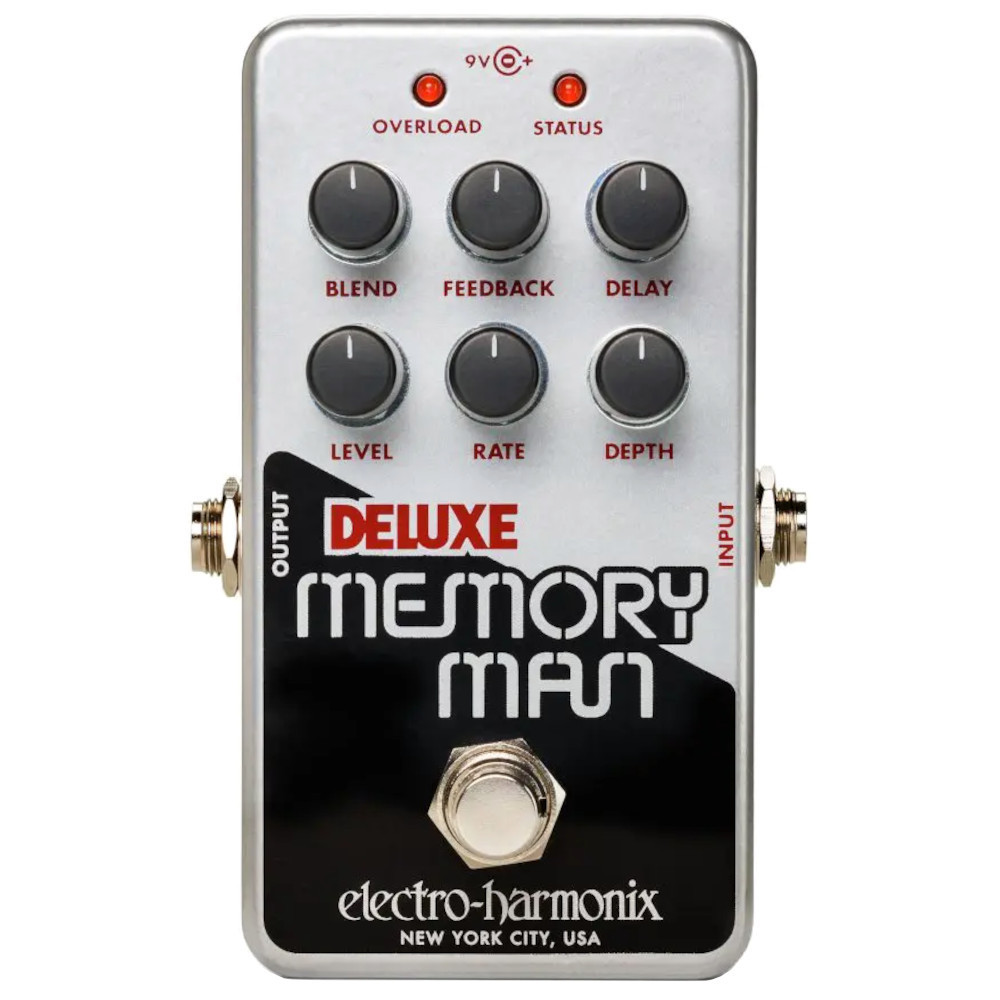

Electro Harmonix Nano Deluxe Memory Man

Dotted Eighth Note Delay
Long Delay With Chorus Modulation
Slap-Back Delay
Chorus Effect
Warm Analog Ambient Delay
New Wave Modulated Delay

The Nano Deluxe Memory Man delivers EHX’s signature analog delay, chorus and vibrato plus some updates we’ve added including both Rate and Depth knobs for enhanced modulation control. It features a maximum delay time of 550mS, an internal user-accessible switch to turn delay tails on or off, true bypass switching when the tails feature is off and it comes equipped with a standard 9Volt power supply. For over 44 years the Deluxe Memory Man has been the gold standard for analog delay and modulation. Now it’s available in an ultra-compact package!

The Nano Deluxe Memory Man provides the following controls and features:

Adjustable delay times from 30mS up to 550mS set by the Delay control
Full control over the number of echo repeats right up to runaway oscillation with the Feedback knob
Adjustable input gain via the Level knob
An overload LED which lights when the signal going into the analog delay block is too hot
Wet/Dry mix control over the dry and delayed signals via the Blend knob
Depth knob which sets the amount of modulation that’s added to the delay to produce vibrato and chorus type effects
Rate controls the modulation speed
Tails Switch that sets whether the echoes decay naturally when the pedal is switched to bypass or if they are instantly muted
Pedalboard friendly, compact, rugged enclosure
Comes equipped with an Electro-Harmonix 9Volt power supply

Circuit: Analog
Bypass: Selectable True Bypass
Audio: Mono
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 4.5 x 2.75 x 2.1
Current Draw: 150mA
