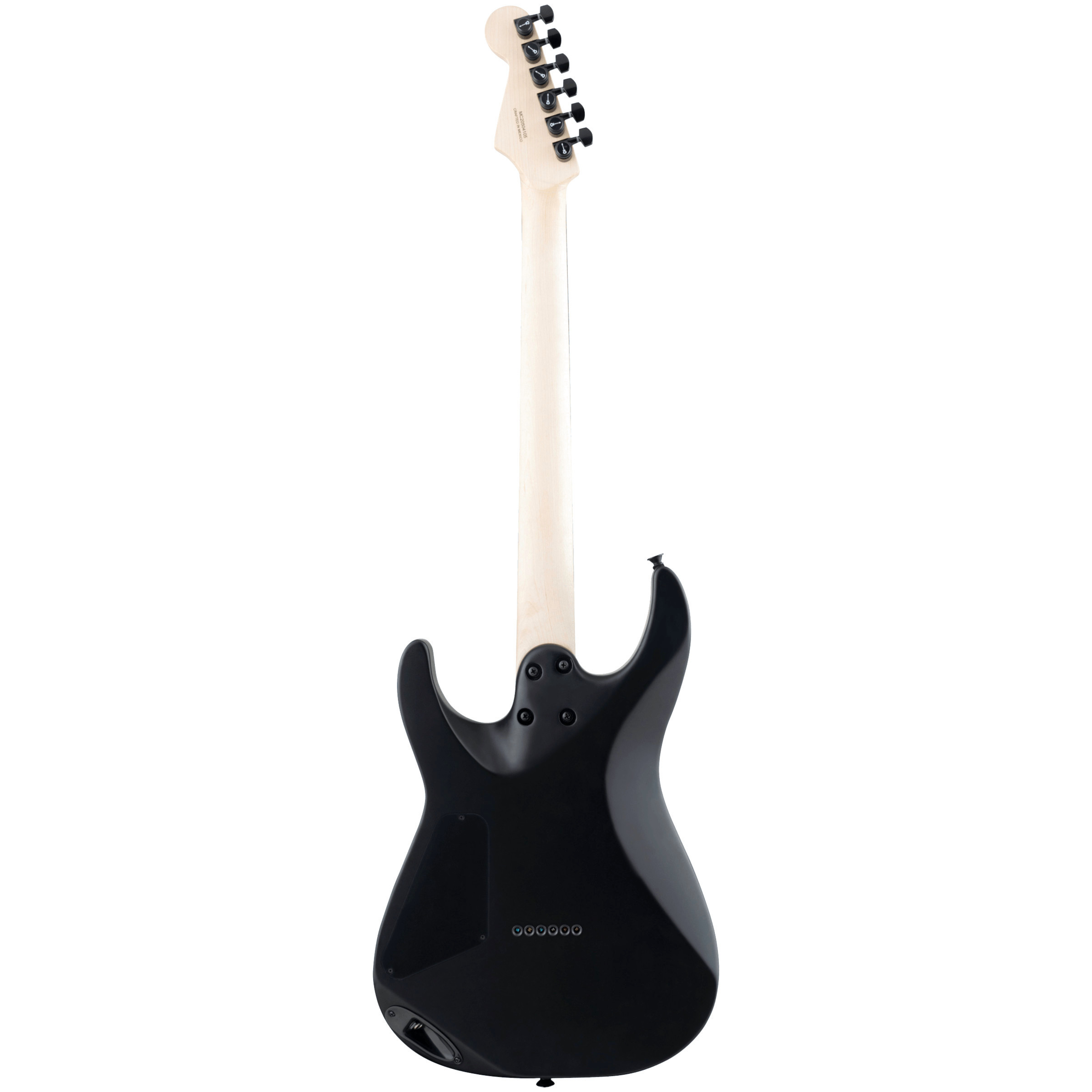

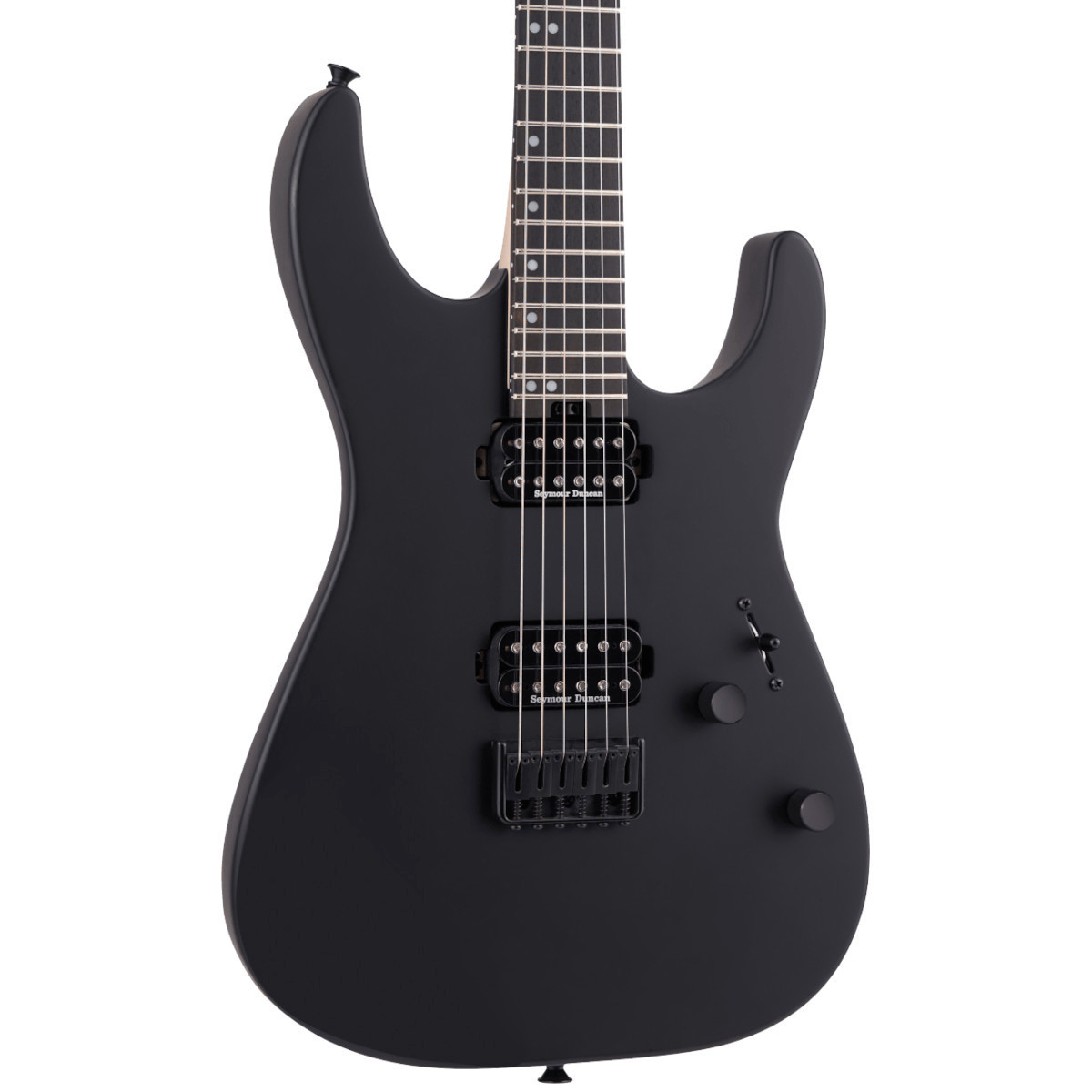

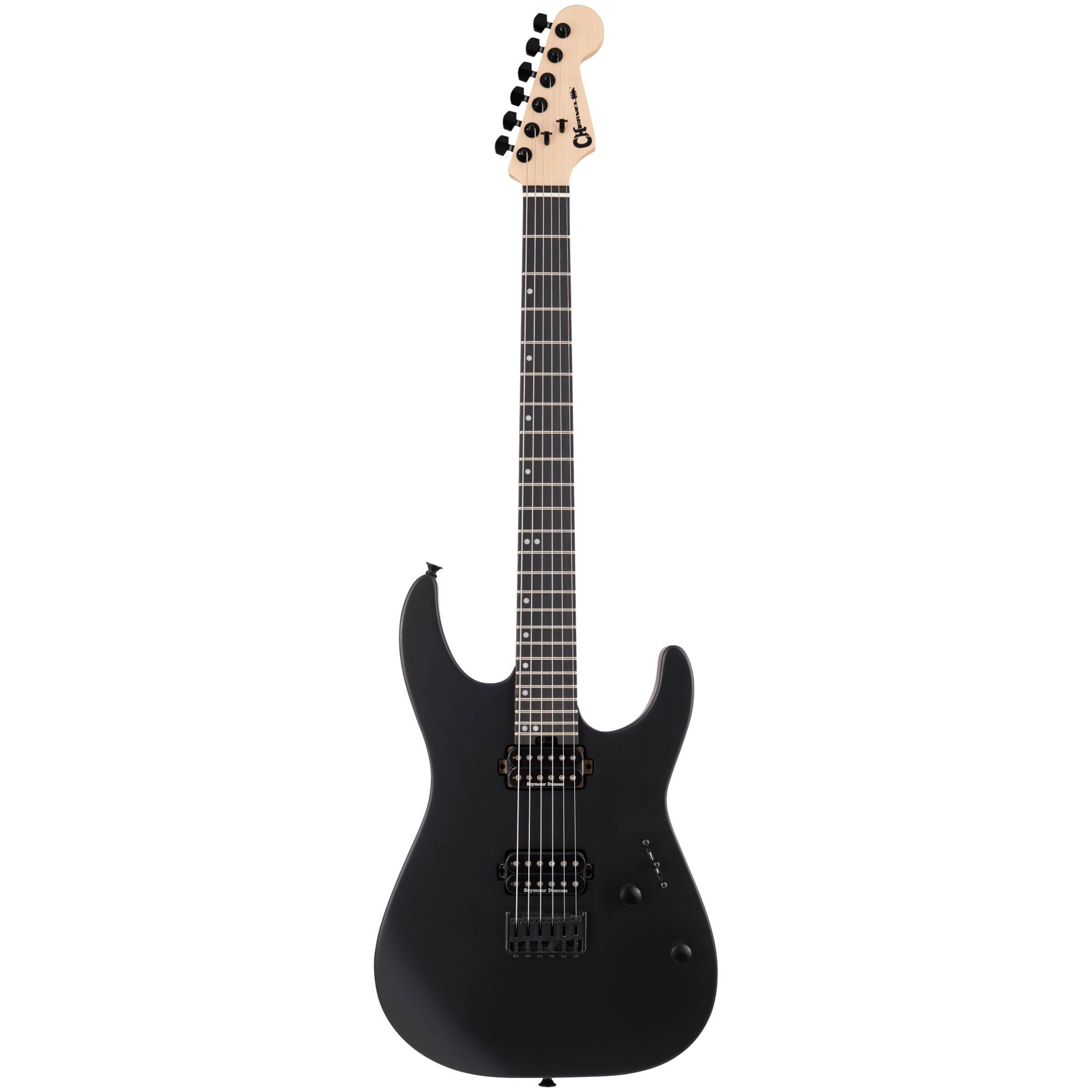

Charvel Pro-Mod DK24 HH HT E, Satin Black

Neck
HEADSTOCK: Licensed Fender® Stratocaster®
NECK MATERIAL: Maple
NECK FINISH: Hand-Rubbed Satin Urethane
NECK SHAPE: Speed Neck with Rolled Fingerboard Edges
NECK CONSTRUCTION: Bolt-On with Graphite Reinforcement
FINGERBOARD RADIUS: 12"-16" Compound Radius (304.8 mm to 406.4 mm)
FINGERBOARD MATERIAL: Ebony
POSITION INLAYS: Offset Pearloid Dot
NUMBER OF FRETS: 24
TRUSS ROD NUT: Heel-Mount Truss Rod Adjustment Wheel
STRING NUT: Black Plastic
NUT WIDTH: 1.6875" (42.86 mm)
NUT MATERIAL: Black Plastic

Body
BODY: Alder
BODY FINISH: Satin
BODY SHAPE: Dinky™
BODY MATERIAL: Alder

Hardware
BRIDGE: Charvel® HT6 String-Through-Body Hardtail
PICKUP COVERS: Black
CONTROL KNOBS: Dome-Style
SWITCH TIP: Black
HARDWARE FINISH: Black
TUNING MACHINES: Charvel®-Branded Die-Cast Locking
STRING TREES: Fender® Standard String Guide
STRINGS: Nickel Plated Steel (.009-.042 Gauges)
NECK PLATE: None - 4-Bolt Sculpted Heel
STRAP BUTTONS: Standard

Electronics
BRIDGE PICKUP: Seymour Duncan® Full Shred™ SH-10B
NECK PICKUP: Seymour Duncan® Alnico II Pro™ APH-1N
PICKUP CONFIGURATION: HH
CONTROLS: Volume (500K EVH® Bourns® Low Friction Pot), No-Load Tone
SWITCHING: 5-Position Blade: Position 1. Full Bridge Pickup, Position 2. Bridge Inner Coil, Position 3. Both Inner Coils, Position 4. Neck Inner Coil, Position 5. Full Neck Pickup
