World-Standard Performance in a Tiny Footprint
The BOSS TU-3 is the world’s go-to stompbox tuner, trusted by players everywhere for its reliable operation and bulletproof durability. Scaled down in size, the TU-3S gives you the same industry-standard performance in a tiny footprint that saves precious pedalboard space. The display and tuning functions are identical to the TU-3—the only thing eliminated is the pedal switch. Always on and ready to go, the TU-3S is perfect for use with pedal switching systems like the BOSS ES-8 and ES-5, and ideal for any setup where space is at a premium

Out of stock
Use the button "Ask Price and Availability" below to send us a request for price and availability information for this product.


Respected TU-3 tuning performance in a more compact size
21-segment LED meter with brightness control
High Brightness mode enhances meter visibility outdoors
Accu-Pitch Sign function provides visual verification when tuning is complete
Chromatic and Guitar/Bass modes, with support for 7-string guitars and 6-string basses
Guitar Flat mode supports “drop” tunings up to six semitones below standard pitch
Powered by optional PSA-series adapter; DC Out jack for powering up to seven BOSS compact effect pedals via an optional PCS-20A daisy-chain cable
BOSS five-year warranty

SPECIFICATIONS
Tuning Range C0 (16.35 Hz)--C8 (4,186 Hz)
Reference Pitch A4 = 436--445 Hz (1 Hz step)
Tuning Accuracy +/- 1 cent
Modes Chromatic
Chromatic flat x2
Guitar
Guitar flat x2
Bass
Bass flat x3
Display mode Cent mode
Stream mode
Power Supply AC adaptor (sold separately)
Bypass Buffered bypass
Controls MODE button
STREAM/CENT button
Nominal Input Level -20 dBu
Input Impedance M ohm
Nominal Output Level -20 dBu
Output Impedance 1 k ohm
Recommended Load Impedance 10 k ohms or greater
Indicator CHECK indicator (Power on indicator)
Connectors INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type

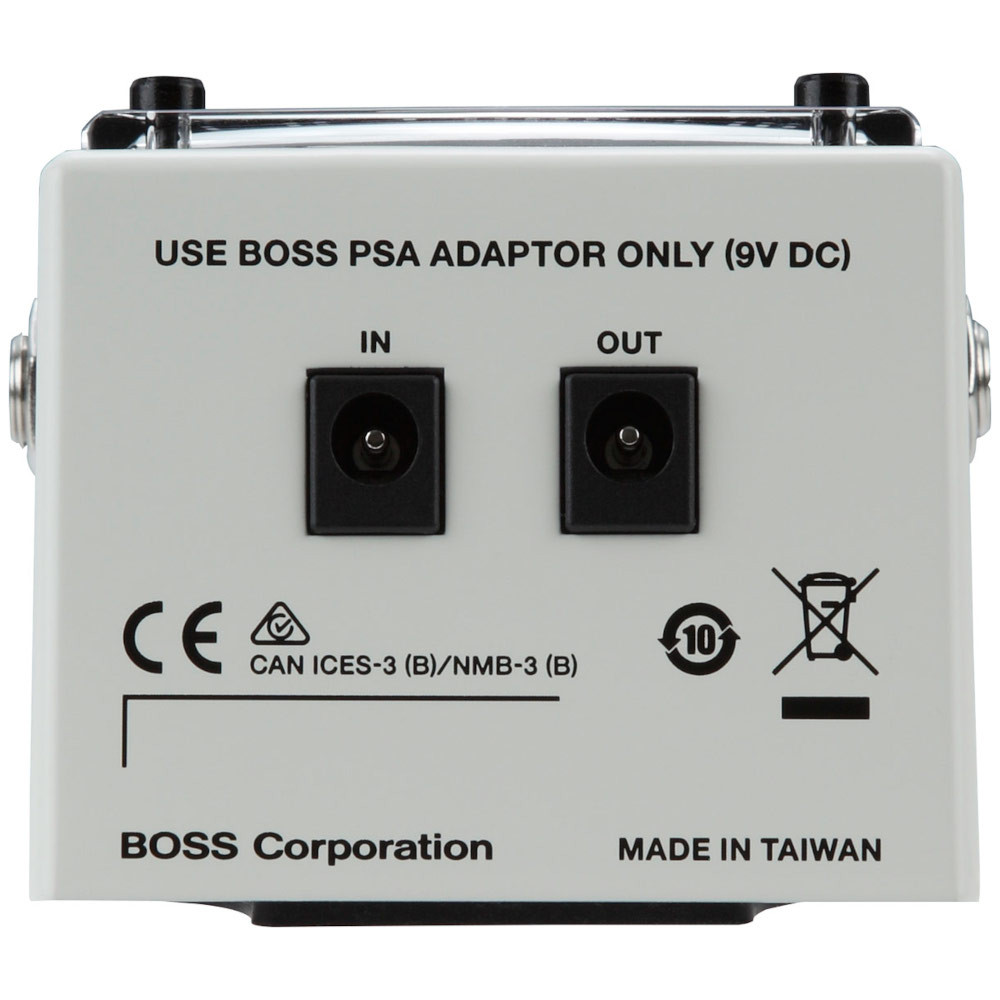

DC IN jack
DC OUT jack
Current Draw 30 mA (DC 9 V)
85 mA (DC 9 V, when High Brightness mode is on)
Accessories Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTE," and "Information")
Parallel DC cord (DC Plug x2)
Rubber foot
Options (sold separately) AC adaptor: PSA series
Parallel DC cord: PCS-20A(DC Plug x8)



SIZE AND WEIGHT
Width 73 mm
2-7/8 inches
Depth 84 mm
3-5/16 inches
Height 56 mm
2-1/4 inches
Weight (including battery) 220 g
8 oz
