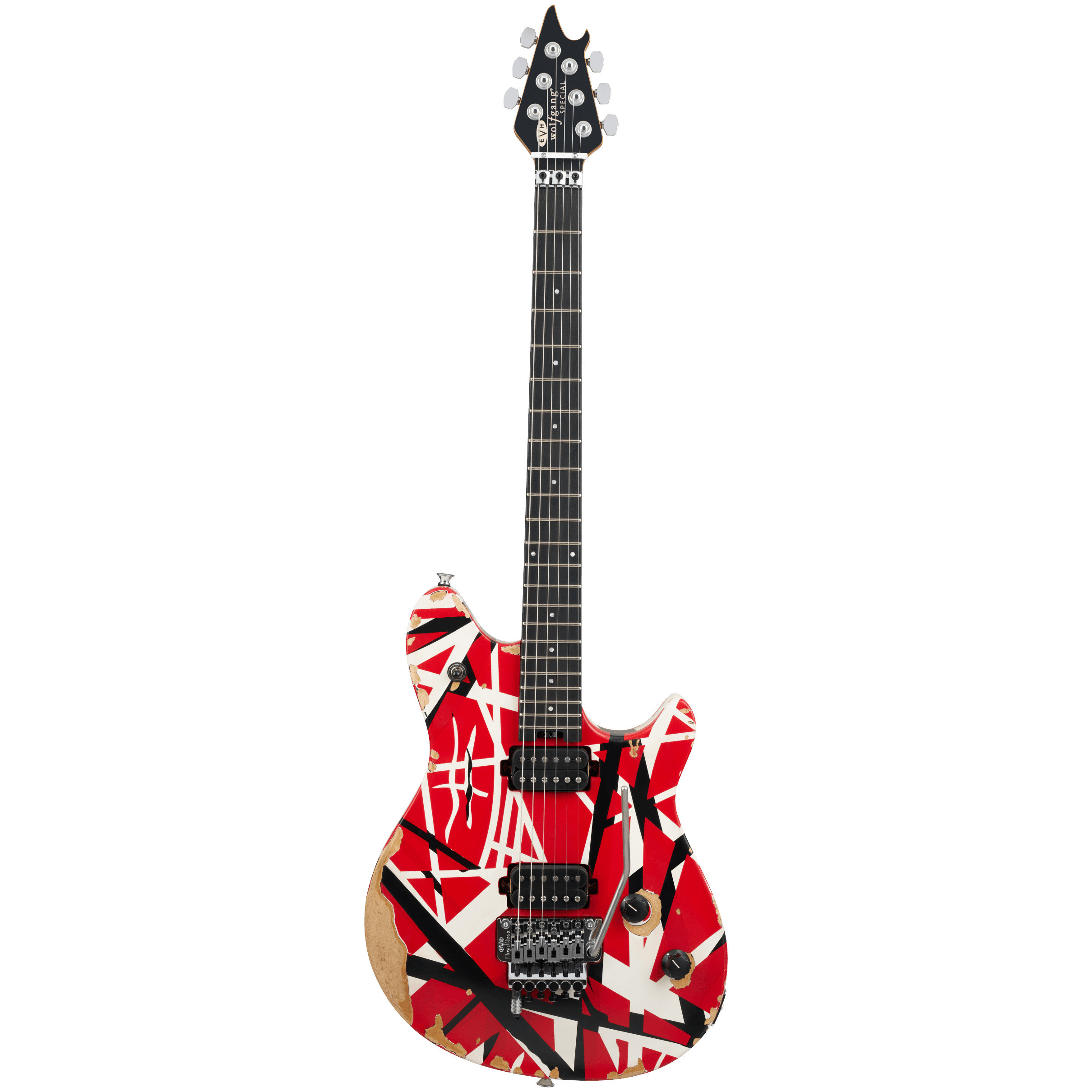

Sporting an eye popping aged striped finish, Red with Black and White Stripes and distressed chrome hardware, the Wolfang Special Striped features a basswood body with arched top, robust graphite-reinforced quartersawn maple neck - carved and rolled to EVH's exacting specifications and a speedy 12"-16" compound radius ebony fingerboard with 22 jumbo frets for facilitating energetic riffing and blazing leads. A heel-mount truss rod adustment wheel also makes for quick and easy neck relief tweaks, a feature guitar techs everywhere will thank you for.
The crystal clear custom-designed EVH Wolfgang Humbucking pickups are mounted directly to the body, supplying girth and sparkle, as well as near-endless sustain to power chords and melody lines.
Every component of this guitar has been selected and positioned for high-speed playing. The low-friction volume knob lets you perform speedy violin-like volume swells with ease while the tone knob resists easy turning - avoiding unwanted tonal shifts as your picking hand flies furiously across the strings. The rock-solid EVH-branded Floyd Rose® locking tremolo bridge combines with the Floyd Rose locking nut to maintain precise tuning, no matter how insane your whammy-bar histrionics get. The EVH D-Tuna® retunes to Drop-D and back with strict accuracy at the mere flick of a finger, making this the only guitar you'll need onstage.
Neck

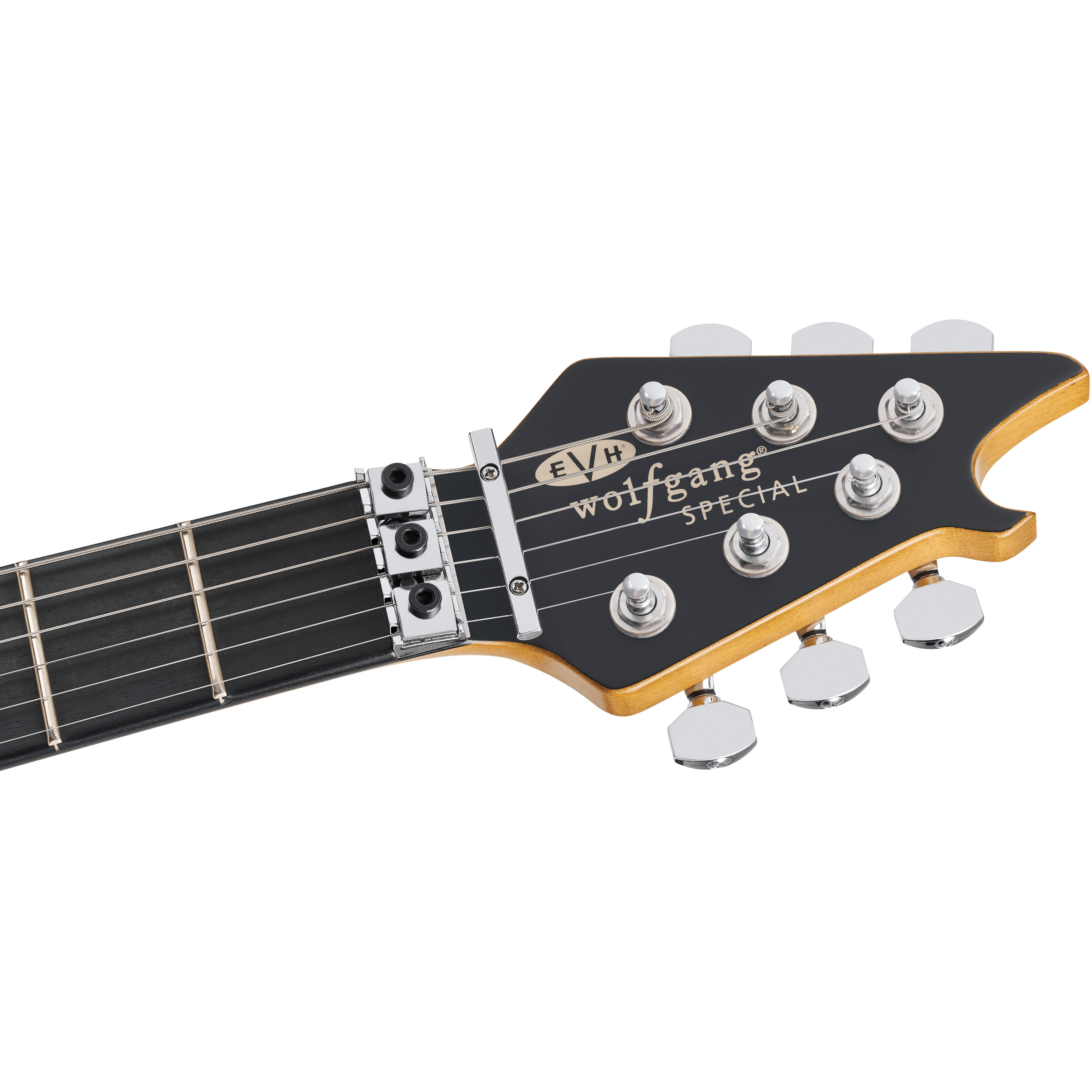

Headstock: EVH® Wolfgang®
Neck Material: Quartersawn Maple
Neck Finish: Hand-Rubbed Satin Urethane
Neck Shape: Wolfgang® Backshape
Neck Construction: Bolt-On with Graphite Reinforcement
Neck Thickness: .805" at 3rd & .890" at 12th Fret
Fingerboard Radius: 12" to 16" Compound Radius (304.8 mm to 406.4 mm)
Fingerboard Material: Ebony
Position Inlays: White Pearloid Dot
Side Dots: Pearloid
Number of Frets: 22
Truss Rod: EVH®-Branded with Wheel
Truss Rod Nut: Heel-Mount Truss Rod Adjustment Wheel
String Nut: Floyd Rose® R2 Locking
Nut Width: 1.625" (41.3 mm)
Nut Material: Floyd Rose® R2 Locking
Fret Size: Jumbo
Scale Length: 25.5" (648 mm)
Body

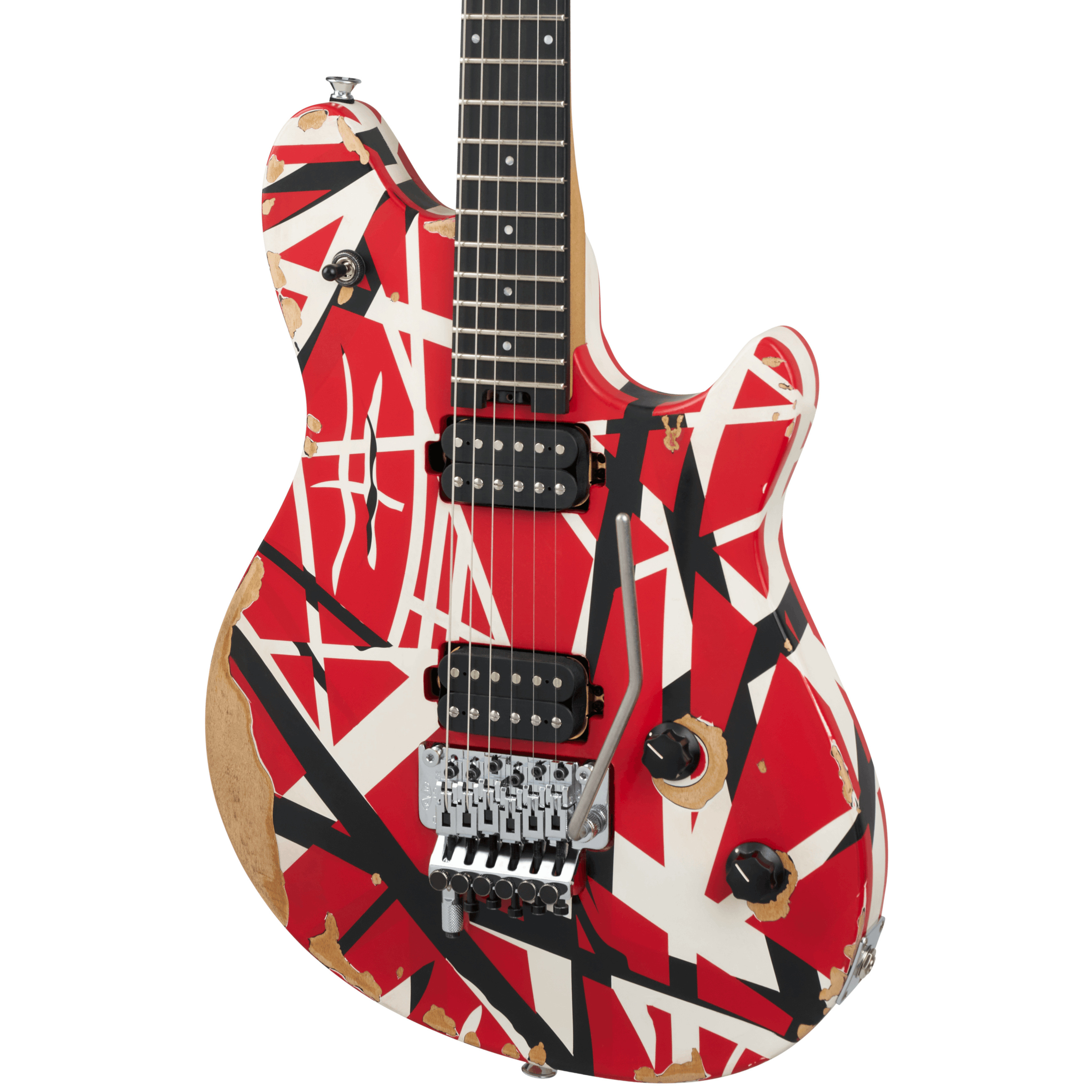

Body: Basswood
Body Finish: Satin Lacquer
Body Shape: Wolfgang®
Hardware
Bridge: EVH®-Branded Floyd Rose® Locking Tremolo with EVH® D-Tuna®
Bridge Mounting: 2-Point Modern
Tremolo Block: Brass
Pickup Covers: Black
Control Knobs: Black Knurled with White Indicator
Switch Tip: Black
Hardware Finish: Chrome

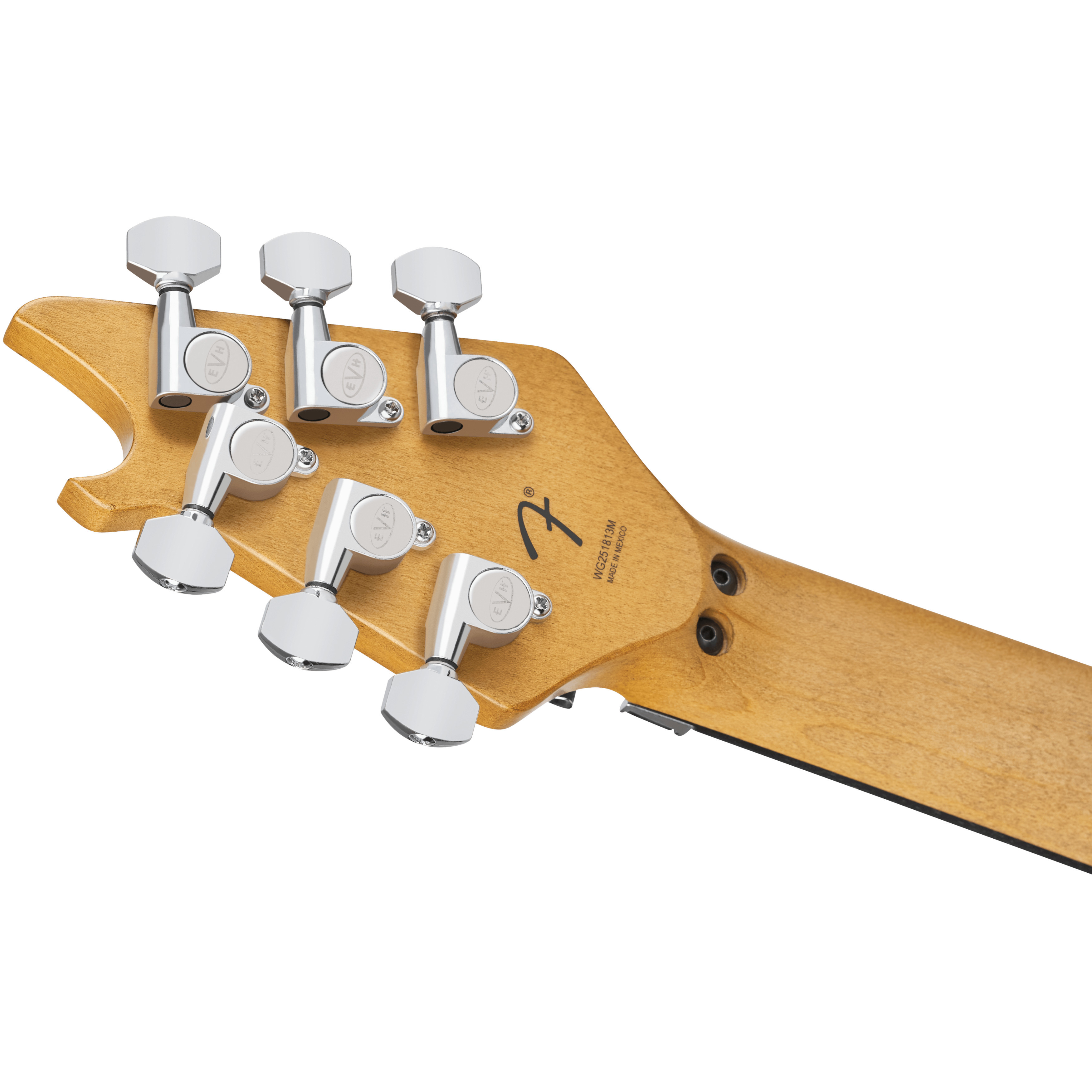

Tuning Machines: EVH®-Branded Gotoh®
String Trees: Floyd Rose® Retainer Bar
Strings: EVH® Nickel Plated Steel (.009-.042 Gauges)
Tremolo Arm: Floyd Rose® 1000 Series Locking
Strap Buttons: Oversized
Electronics
Bridge Pickup: Direct Mount EVH® Wolfgang® Humbucking
Neck Pickup: Direct Mount EVH® Wolfgang® Humbucking
Pickup Configuration: HH
Controls: Volume (500K EVH® Bourns® Low Friction Pot) with Treble Bleed Circuit, Tone (250K EVH® Bourns® High Friction Pot)
Switching: 3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup
