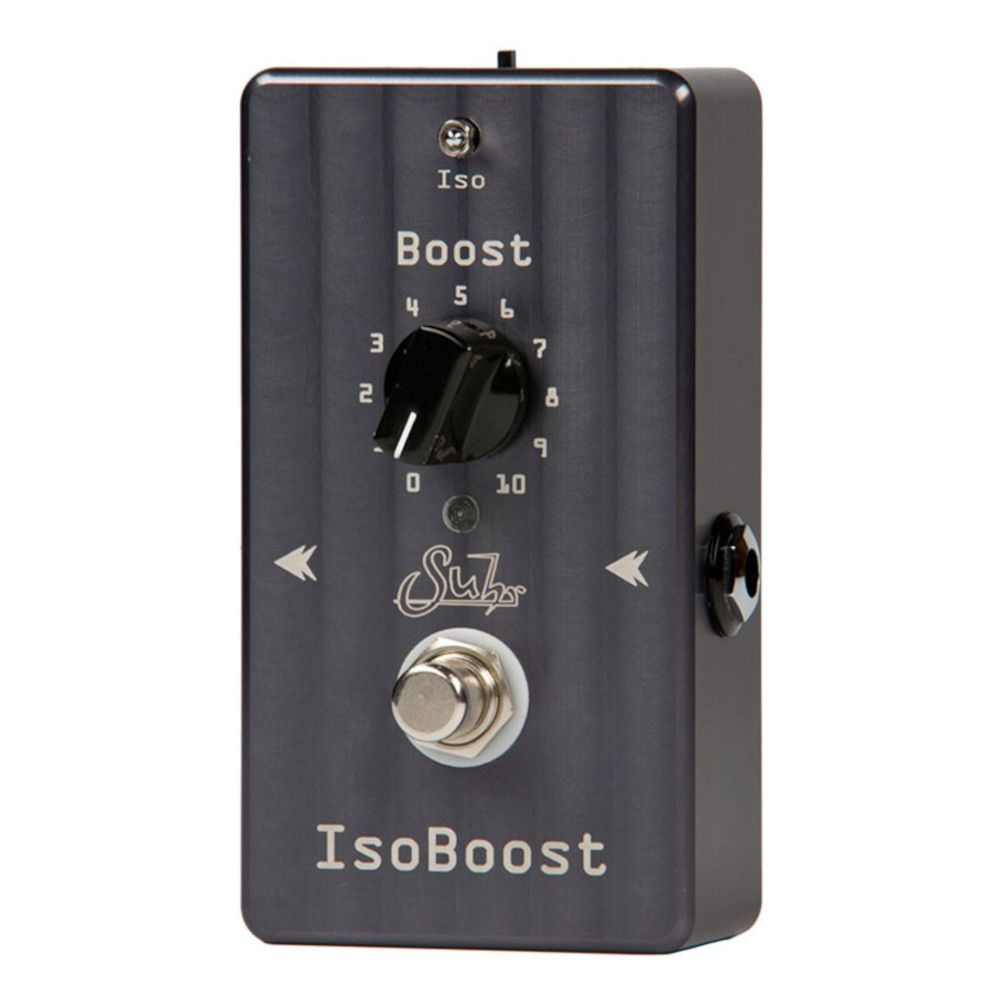

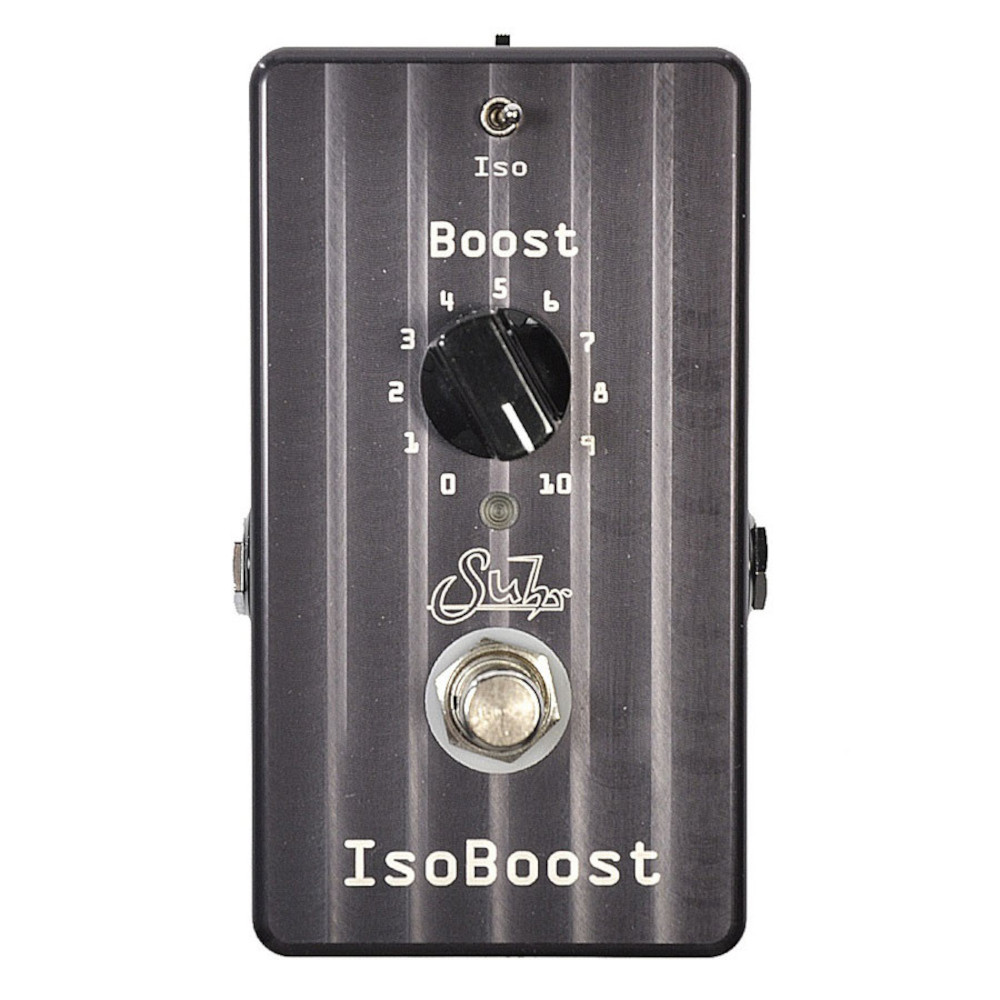

Controls:
Boost: Adjusts the amount of boost from the circuit, from Unity (0dB) to +20dB of gain.
ISO (Isolation) Switch (two position): Activates a transformer to isolate the output and eliminate ground loops between amplifiers and effects.
Left: Isolated transformer, buffered output
Right: Non-isolated, buffered output
Note: Iso Boost is always buffered.
BATTERY MONITOR The internal 9V battery is monitored at both power up and during use. The user will be alerted when the battery voltage becomes low. When the battery becomes too low to reliably operate the pedal, True Bypass is activated.
Input Impedance: 1M ohmOutput
Impedance: 600 ohm / 10k Ohm

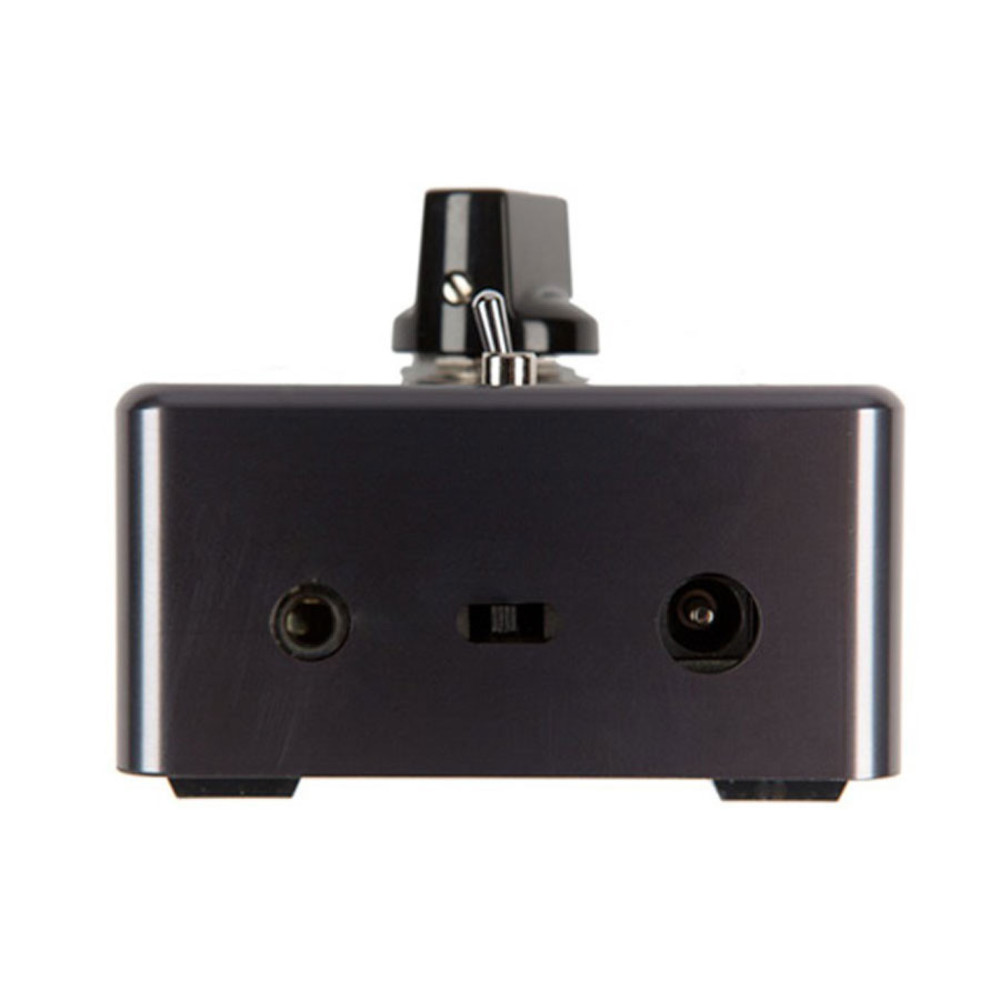

Power Connector: 9Vdc, center negative, 2.1mm x 5.5mm
Operating Voltage: 4V to 18V (nominal 9V)
Maximum Voltage: 20Vdc
Reverse Battery Protection: yes
Over Voltage Protection: yes
Current Consumption: 8mA
Estimated Battery Life: 75 – 100 hours of continuous use
Dimensions: 2.50” Width x 4.50” Depth x 1.25” Height
Weight: one pound
FxLink Connector: 1/8”
FxLink max Voltage: 3.3Vdc
Shield → Tip: Activate on/off
ROHS Compliant: Yes
