Simplifies Your Setup

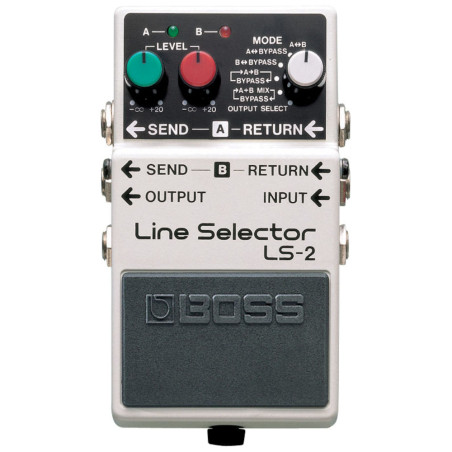

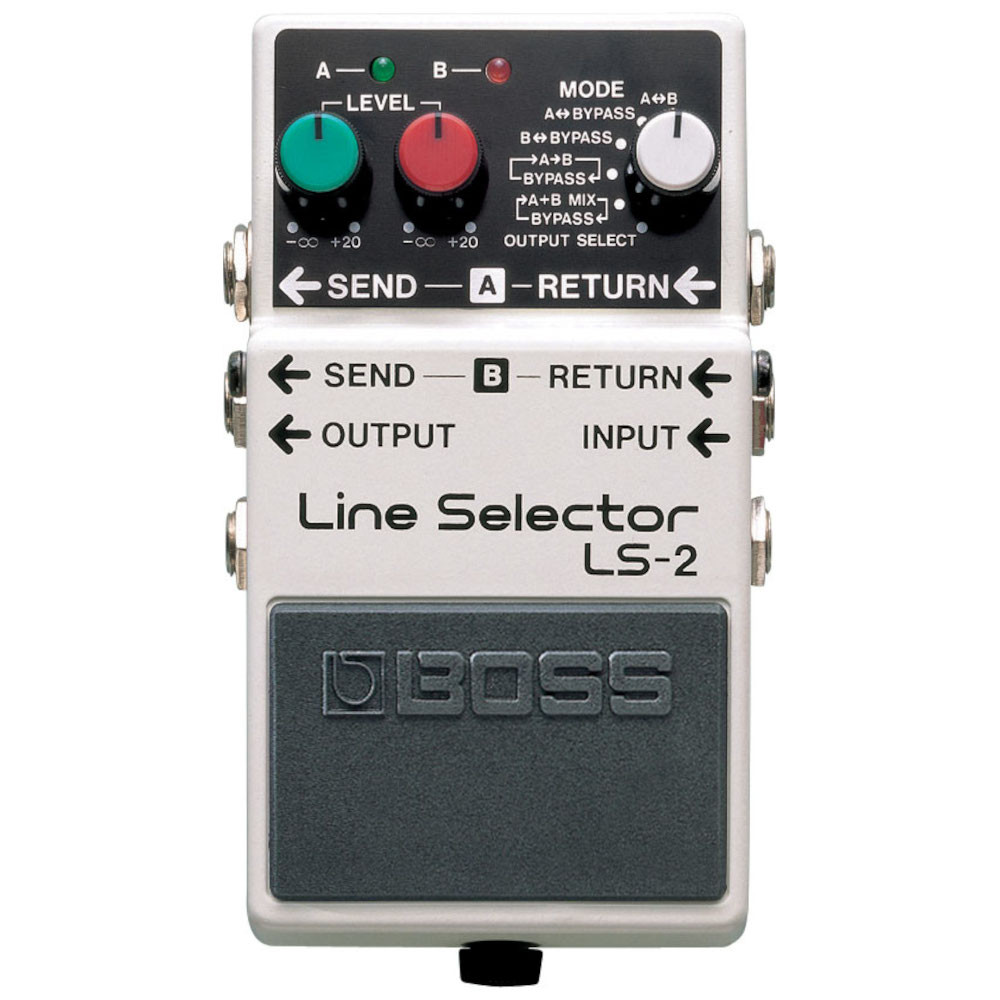

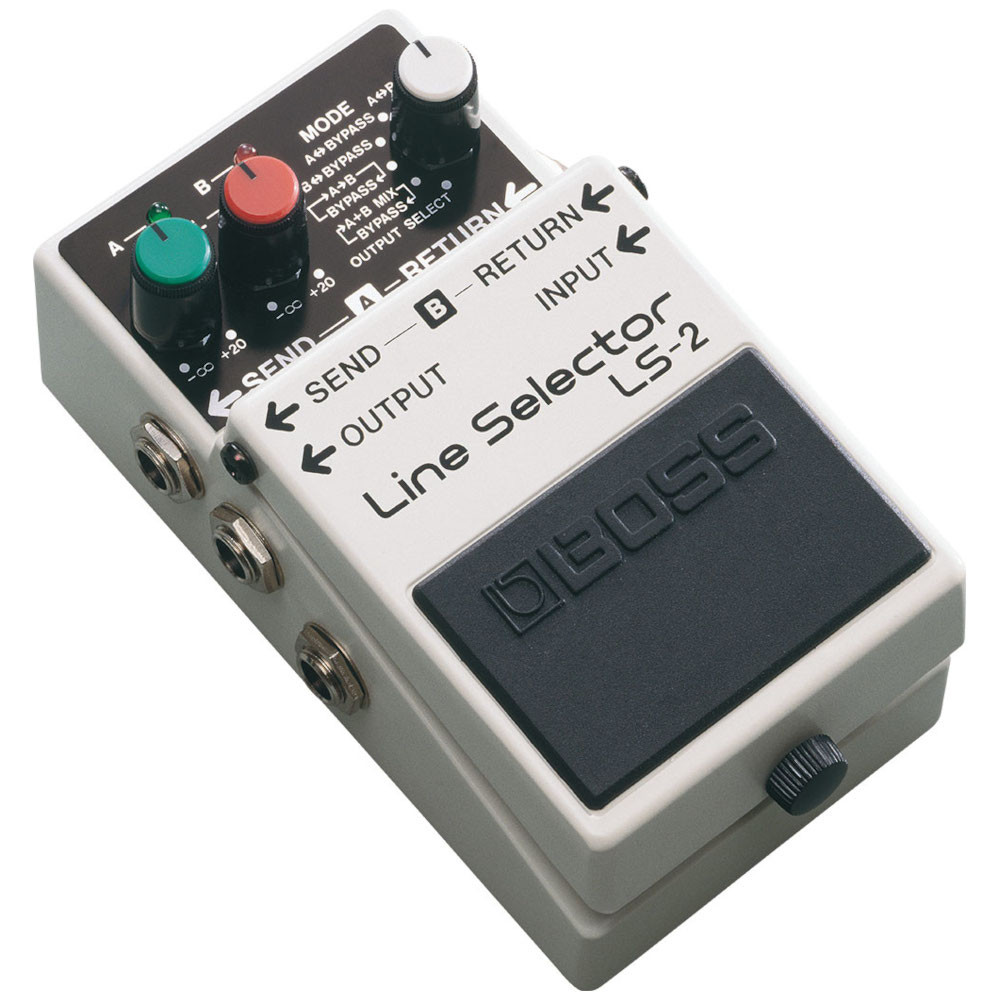

The LS-2 Line Selector pedal represents the easy way to switch settings among several effects devices or amplifiers, or route input and output signals. Two line loops and six looping modes provide a wide variety of applications.
Free Shipping on Orders over 175€
+351 211 653 812 (National landline network)
Hassle Free Returns
3 year Warranty
Compact line selection pedal for connecting and switching between multiple amplifiers and effects devices
Provides two line loops with Level control and six looping modes
Can supply power to several BOSS compact pedals when used with an AC adaptor
The ideal power supply and master switching unit for multiple effects setups
BOSS 5-year warranty
| SPECIFICATIONS | |
|---|---|
| Nominal Input Level | -20 dBu |
| Input Impedance | 1 M ohm |
| Nominal Output Level | -20 dBu |
| Output Impedance | 1 k ohm |
| Recommended Load Impedance | 10 k ohms or greater |
| Bypass | Buffered bypass |
| Controls | MODE selector switch LEVEL knobs A/B Pedal switch |
| Indicator | Line indicator A/B (Used for indication of check battery) |
| Connectors | INPUT jack: 1/4-inch phone type SEND jacks A/B: 1/4-inch phone type RETURN jacks A/B: 1/4-inch phone type OUTPUT jack: 1/4-inch phone type DC IN jack |
| Power Supply | Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61) AC adaptor (PSA series: sold separately) |
| Current Draw | 30 mA |
| Expected battery life under continuous use | Carbon: Approx. 14.5 hours Alkaline: Approx. 29.5 hours *These figures will vary depending on the actual conditions of use. |
| Accessories | Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information") Carbon-zinc battery (9 V, 6F22) |
| Options (sold separately) | AC adaptor: PSA series Parallel DC Cord: PCS-20A |
| SIZE AND WEIGHT | |
|---|---|
| Width | 73 mm 2-7/8 inches |
| Depth | 129 mm 5-1/8 inches |
| Height | 59 mm 2-3/8 inches |
| Weight | 430 g 1 lb |
